Are verified 60Hz models available for Saudi Arabia projects?

Yes. The Automatic Shutter Series (15AAQ1, 20/25/30 AUA, AUHT, AUH), Louver Series (20/25/30 ALA, ALH), and Metallic Series (20/25/30 ASB) all feature verified 220V / 60Hz single-phase ratings delivering 122 to 655 CFM.

Why are the reversible models (RGA/RLA) flagged with a 50Hz warning?

The official manufacturer catalogue documents the reversible pull-cord models (20RGA, 25RGA, 30RGA, 20RLA, 25RLA, 30RLA) exclusively with 220V/230V 50Hz performance curves. They should not be deployed on Saudi Arabian 60Hz electrical supply without prior factory 60Hz model confirmation.

What is the difference between AMCA Watts and IEC Watts?

In the KDK catalogue, AMCA Watts represents electrical input measured at 0 in. H2O static pressure in accordance with AMCA test procedures. IEC Watts reflects standard international electrotechnical measurement. AMCA certified ratings apply to the AMCA test method.

Can KDK plastic wall fans be used in commercial kitchens?

They are suitable for general room ventilation, pantry kitchens, heat, and steam exhaust. However, they are strictly NOT suitable for commercial cooking grease exhaust hoods. Commercial grease hoods require NFPA 96 / UL 762 compliant centrifugal upblast roof fans or dedicated grease-rated centrifugal box fans.

What wall cutout size is required for each fan size?

The required square rough-in wall cutout is 175×175 mm for 15cm (15AAQ1), 250×250 mm for 20cm (20AUA/ALA/ASB), 300×300 mm for 25cm (25AUA/ALA/ASB), and 350×350 mm for 30cm (30AUA/ALA/ASB) models.

How loud are KDK plastic wall exhaust fans?

They are engineered for whisper-quiet residential and office comfort. Sound loudness ranges from 1.0 sone (ultra-quiet, approx. 31 dBA) on models like 30AUH 11 up to 3.6 sones on 25AUA at 60Hz.

What safety features are built into the motor?

All KDK wall fan motors feature an integrated thermal cut-off and thermal fuse that permanently interrupts power if the motor temperature exceeds safe operating limits, eliminating potential fire hazards.

How does the automatic shutter operate?

The rear shutter louvers open automatically when electrical power is supplied to the motor and close tightly via gravity and soft plastic cushions when the fan is turned off, preventing backdrafts, outdoor dust, and pest ingress.

What documentation is available for engineering approval?

Cloud Electricals provides the official KDK wall-mount catalogue PDF, technical submittal cut sheets, dimensional drawings, and Saudi commercial compliance documentation (CR, VAT, ISO, COC) for contractor and consultant review.

KDK Wall-Mount Series • 15cm to 30cm

KDK Plastic Wall Mounted Exhaust Fan

Japanese-engineered small-room wall exhaust fans featuring automatic gravity shutters, slim architectural louvers, reversible airflow, and metallic kitchen options for bathrooms, toilets, pantry kitchens, and offices across Saudi Arabia.

Request Quote on WhatsApp Call Technical Sales Download KDK Wall Catalog

In brief

What is the KDK plastic wall mounted exhaust fan?

The KDK wall-mount range includes 15cm (15AAQ1) to 30cm (30AUA/ALA/ASB) propeller ventilation fans delivering 122 to 655 CFM at verified 220V/60Hz ratings. Equipped with a half-pitch motor, Silent Stream 3D sickle blade, and thermal fuse safety, it provides quiet and reliable wall ventilation for residential and commercial rooms.

KDK plastic wall mounted exhaust fan 30cm square type with automatic shutter

KDK Plastic Wall Exhaust Fan

220V / 60Hz verified ratings

Automatic shutter & louver options

Saudi Arabia small-room supply

KDK Plastic Wall Exhaust Fan

Fan Category

Plastic & Metallic Wall Exhaust Fan

Product Families

Automatic Shutter, Louver, Reversible & Metallic

Airflow Range (60Hz)

122 to 655 CFM (207 to 1,113 m³/h)

Impeller Sizes

15 cm (6"), 20 cm (8"), 25 cm (10"), 30 cm (12")

Motor Electrical Supply

1~220V / 60Hz (Single-Phase with Thermal Fuse)

Sound Loudness

1.0 to 3.6 sones (low-noise residential & office)

Application Check

Is the KDK plastic wall fan suitable for your room?

Evaluate room square footage, required air changes, wall opening cutout, and electrical frequency before ordering.

Good fit

Residential bathrooms, guest toilets, powder rooms, and shower enclosures
Pantry kitchens, home cooking prep zones, and office coffee bars
Commercial retail backrooms, staff change rooms, and laundry closets
Small private offices, clinic consultation rooms, and general storage spaces

Confirm first

Wall opening cutout dimension (175×175 mm up to 350×350 mm depending on size)
Electrical supply: verify 220V 60Hz single-phase network availability
Front grille preference: open automatic shutter vs. slim protective louver
Reversible model check: RGA/RLA catalog curves are 50Hz (confirm 60Hz availability before order)

Use another documented fan

Commercial kitchen grease exhaust hoods (select Upblast Roof Fan or Centrifugal Box Fan)
High-pressure industrial factories/warehouses (select KDK Steel Square Fan or TAT LDSF)
Long ducted multi-room ventilation networks (select Inline Duct Fan)
Explosion-proof or ATEX-classified chemical vapor zones

Commercial kitchen application boundary: Kitchen application boundary: KDK plastic and metallic wall fans are engineered for ambient residential and pantry kitchen ventilation, heat, steam, and odor expulsion. They are strictly NOT designed or approved for commercial cooking grease exhaust hoods. Grease-heavy commercial cooking requires NFPA 96 / UL 762 compliant centrifugal upblast roof fans or dedicated grease-rated centrifugal box fans.

Model Specifications

KDK Wall-Mount Exhaust Fan Families & Verified Ratings

Explore exact unbundled 60Hz and 50Hz performance specifications across Automatic Shutter, Louver, Reversible, and Metallic series.

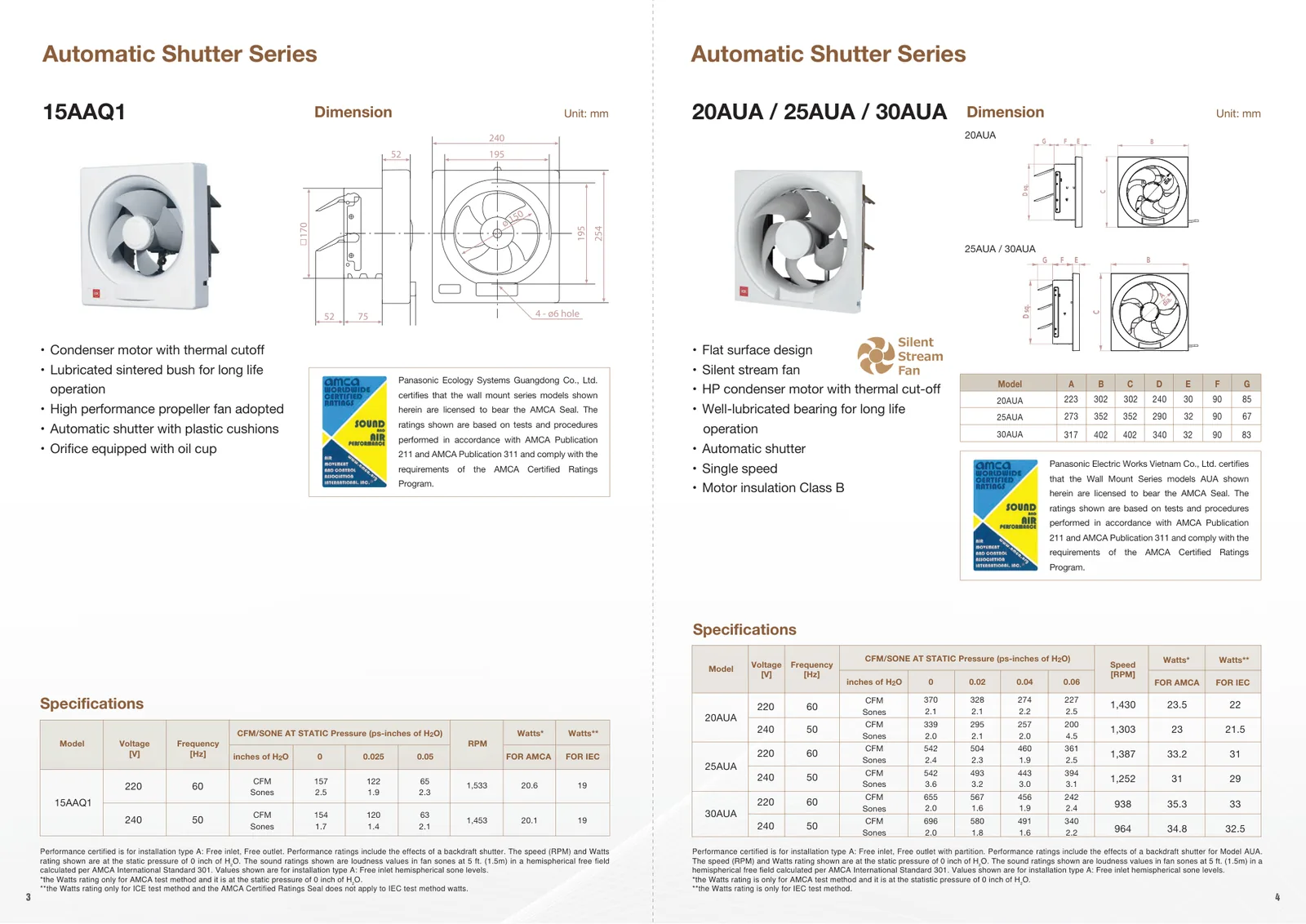

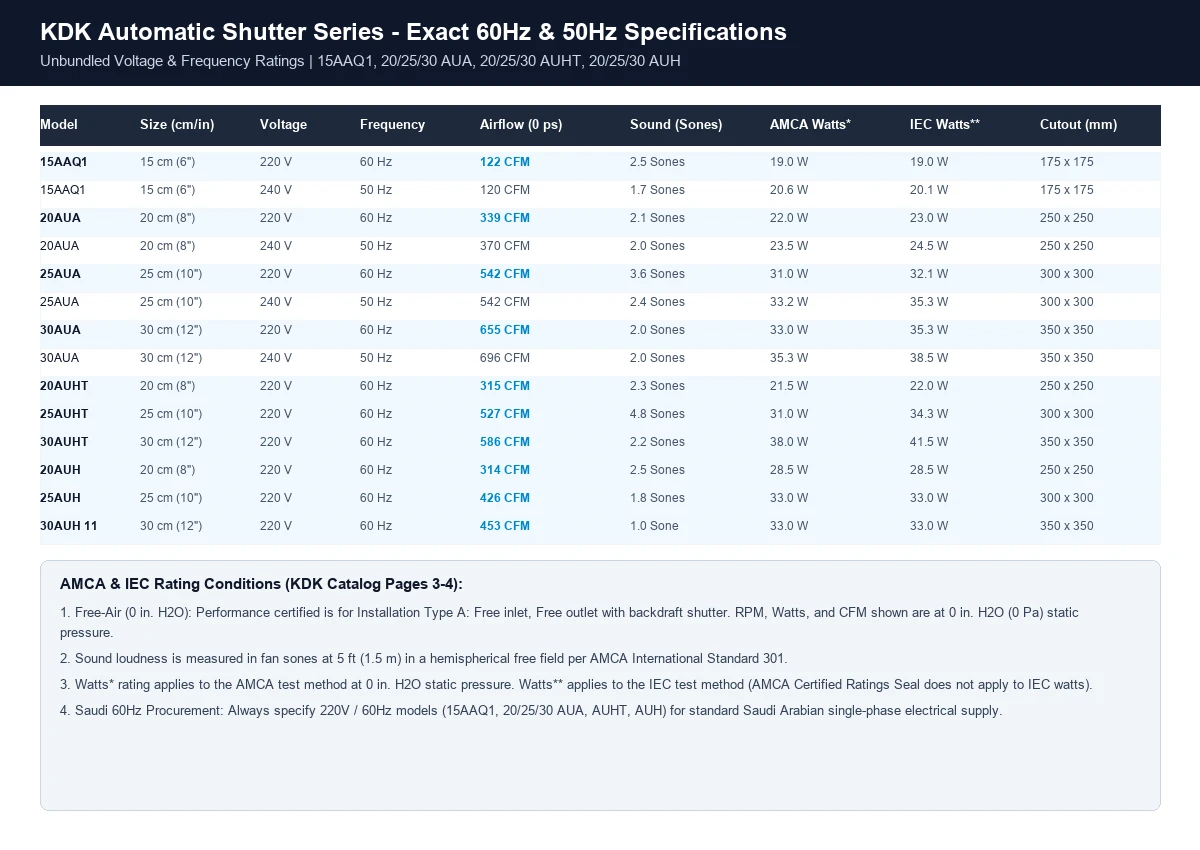

Automatic Shutter Series (AUA / AUHT / AUH / 15AAQ1)

Plastic wall mounted exhaust fans with automatic gravity shutters that open during operation and close tightly when stopped to prevent drafts, insects, and sand ingress.

220V 60Hz Verified

Swipe horizontally to view all table columns.

Model	Size (cm/in)	Voltage	Frequency	Airflow (0 ps)	Sound (Sones)	Power (AMCA / IEC)	Wall Cutout (mm)	Application

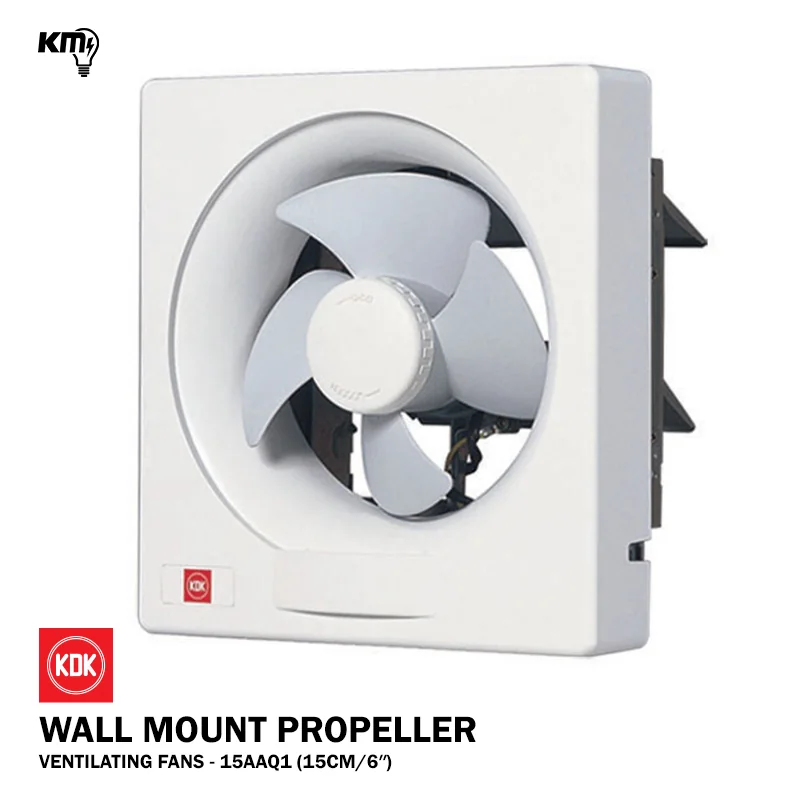

15AAQ1 (60Hz)	15 cm (6")	220 V	60 Hz	122 CFM (207 CMH)	2.5 sones	19.0 W	175 × 175 mm	Compact bathroom, toilet, small utility
15AAQ1 (50Hz)	15 cm (6")	240 V	50 Hz	120 CFM (204 CMH)	1.7 sones	20.6 W	175 × 175 mm	50Hz baseline reference
20AUA (60Hz)	20 cm (8")	220 V	60 Hz	339 CFM (576 CMH)	2.1 sones	22.0 W	250 × 250 mm	Standard bathroom, pantry, powder room
20AUA (50Hz)	20 cm (8")	240 V	50 Hz	370 CFM (629 CMH)	2.0 sones	23.5 W	250 × 250 mm	50Hz baseline reference
25AUA (60Hz)	25 cm (10")	220 V	60 Hz	542 CFM (921 CMH)	3.6 sones	31.0 W	300 × 300 mm	Kitchen prep, master bath, store room
25AUA (50Hz)	25 cm (10")	240 V	50 Hz	542 CFM (921 CMH)	2.4 sones	33.2 W	300 × 300 mm	50Hz baseline reference
30AUA (60Hz)	30 cm (12")	220 V	60 Hz	655 CFM (1,113 CMH)	2.0 sones	33.0 W	350 × 350 mm	High airflow residential kitchen, light store
30AUA (50Hz)	30 cm (12")	240 V	50 Hz	696 CFM (1,183 CMH)	2.0 sones	35.3 W	350 × 350 mm	50Hz baseline reference
20AUHT (60Hz)	20 cm (8")	220 V	60 Hz	315 CFM (535 CMH)	2.3 sones	21.5 W	250 × 250 mm	Standard wall exhaust with auto shutter
25AUHT (60Hz)	25 cm (10")	220 V	60 Hz	527 CFM (895 CMH)	4.8 sones	31.0 W	300 × 300 mm	Medium wall exhaust with auto shutter
30AUHT (60Hz)	30 cm (12")	220 V	60 Hz	586 CFM (996 CMH)	2.2 sones	38.0 W	350 × 350 mm	Higher airflow wall exhaust
20AUH (60Hz)	20 cm (8")	220 V	60 Hz	314 CFM (534 CMH)	2.5 sones	28.5 W	250 × 250 mm	60Hz-specific shutter model
25AUH (60Hz)	25 cm (10")	220 V	60 Hz	426 CFM (724 CMH)	1.8 sones	33.0 W	300 × 300 mm	60Hz-specific shutter model
30AUH 11 (60Hz)	30 cm (12")	220 V	60 Hz	453 CFM (770 CMH)	1.0 sone	33.0 W	350 × 350 mm	Ultra-quiet 1.0 sone 60Hz model

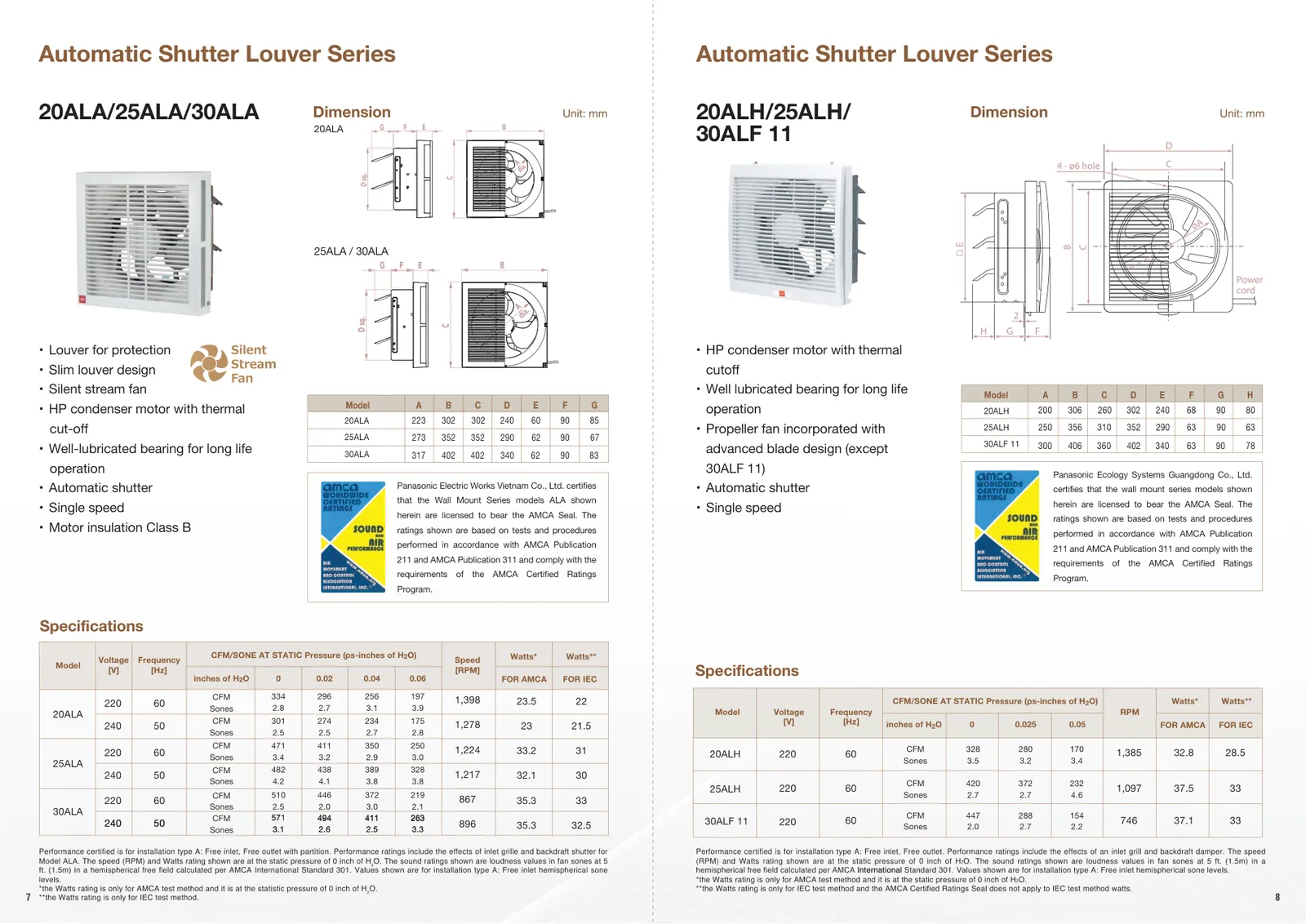

Automatic Shutter Louver Series (ALA / ALH / ALF)

Slim architectural front louver grille concealing the fan blades while providing automatic rear shutter backdraft protection.

220V 60Hz Verified

Swipe horizontally to view all table columns.

Model	Size (cm/in)	Voltage	Frequency	Airflow (0 ps)	Sound (Sones)	Power (AMCA / IEC)	Wall Cutout (mm)	Application
20ALA (60Hz)	20 cm (8")	220 V	60 Hz	301 CFM (511 CMH)	2.5 sones	21.5 W	250 × 250 mm	Bathroom, guest toilet, slim louver facade
20ALA (50Hz)	20 cm (8")	240 V	50 Hz	334 CFM (567 CMH)	2.8 sones	23.5 W	250 × 250 mm	50Hz baseline reference
25ALA (60Hz)	25 cm (10")	220 V	60 Hz	494 CFM (839 CMH)	2.6 sones	30.0 W	300 × 300 mm	Pantry kitchen, store, louver aesthetic
25ALA (50Hz)	25 cm (10")	240 V	50 Hz	494 CFM (839 CMH)	3.1 sones	33.2 W	300 × 300 mm	50Hz baseline reference
30ALA (60Hz)	30 cm (12")	220 V	60 Hz	510 CFM (867 CMH)	2.5 sones	32.5 W	350 × 350 mm	Large residential room, slim front louver
30ALA (50Hz)	30 cm (12")	240 V	50 Hz	571 CFM (970 CMH)	3.1 sones	35.3 W	350 × 350 mm	50Hz baseline reference
20ALH (60Hz)	20 cm (8")	220 V	60 Hz	280 CFM (476 CMH)	3.5 sones	28.5 W	250 × 250 mm	60Hz-specific louver model
25ALH (60Hz)	25 cm (10")	220 V	60 Hz	372 CFM (632 CMH)	2.7 sones	33.0 W	300 × 300 mm	60Hz-specific louver model
30ALF 11 (60Hz)	30 cm (12")	220 V	60 Hz	288 CFM (489 CMH)	2.0 sones	33.0 W	350 × 350 mm	Quiet 60Hz louver model

Reversible Series (RGA & RLA — 50Hz Catalogue Reference)

Reversible pull-cord models designed for dual-direction airflow (exhaust and fresh air intake). Documented in manufacturer catalog with 50Hz performance curves.

50Hz Catalogue Only • Confirm 60Hz

Regional Frequency Notice: Notice: The reversible pull-cord models (RGA and RLA) are catalogued with 50Hz curve ratings. For Saudi Arabia 60Hz projects, contact Cloud Electricals technical sales to confirm 60Hz model availability before specification.

Swipe horizontally to view all table columns.

Model	Size (cm/in)	Voltage / Freq	Exhaust Mode (0 Pa)	Intake Mode (0 Pa)	Front Face	Frequency Status	Wall Cutout
20RGA	20 cm (8")	220-230V 50Hz	380 CMH (224 CFM)	260 CMH (153 CFM)	Open Shutter	50Hz Catalogue Only*	250 × 250 mm
25RGA	25 cm (10")	220-230V 50Hz	660 CMH (388 CFM)	460 CMH (271 CFM)	Open Shutter	50Hz Catalogue Only*	300 × 300 mm
30RGA	30 cm (12")	220-230V 50Hz	960 CMH (565 CFM)	660 CMH (388 CFM)	Open Shutter	50Hz Catalogue Only*	350 × 350 mm
20RLA	20 cm (8")	220-230V 50Hz	350 CMH (206 CFM)	240 CMH (141 CFM)	Slim Louver	50Hz Catalogue Only*	250 × 250 mm
25RLA	25 cm (10")	220-230V 50Hz	600 CMH (353 CFM)	420 CMH (247 CFM)	Slim Louver	50Hz Catalogue Only*	300 × 300 mm
30RLA	30 cm (12")	220-230V 50Hz	860 CMH (506 CFM)	580 CMH (341 CFM)	Slim Louver	50Hz Catalogue Only*	350 × 350 mm

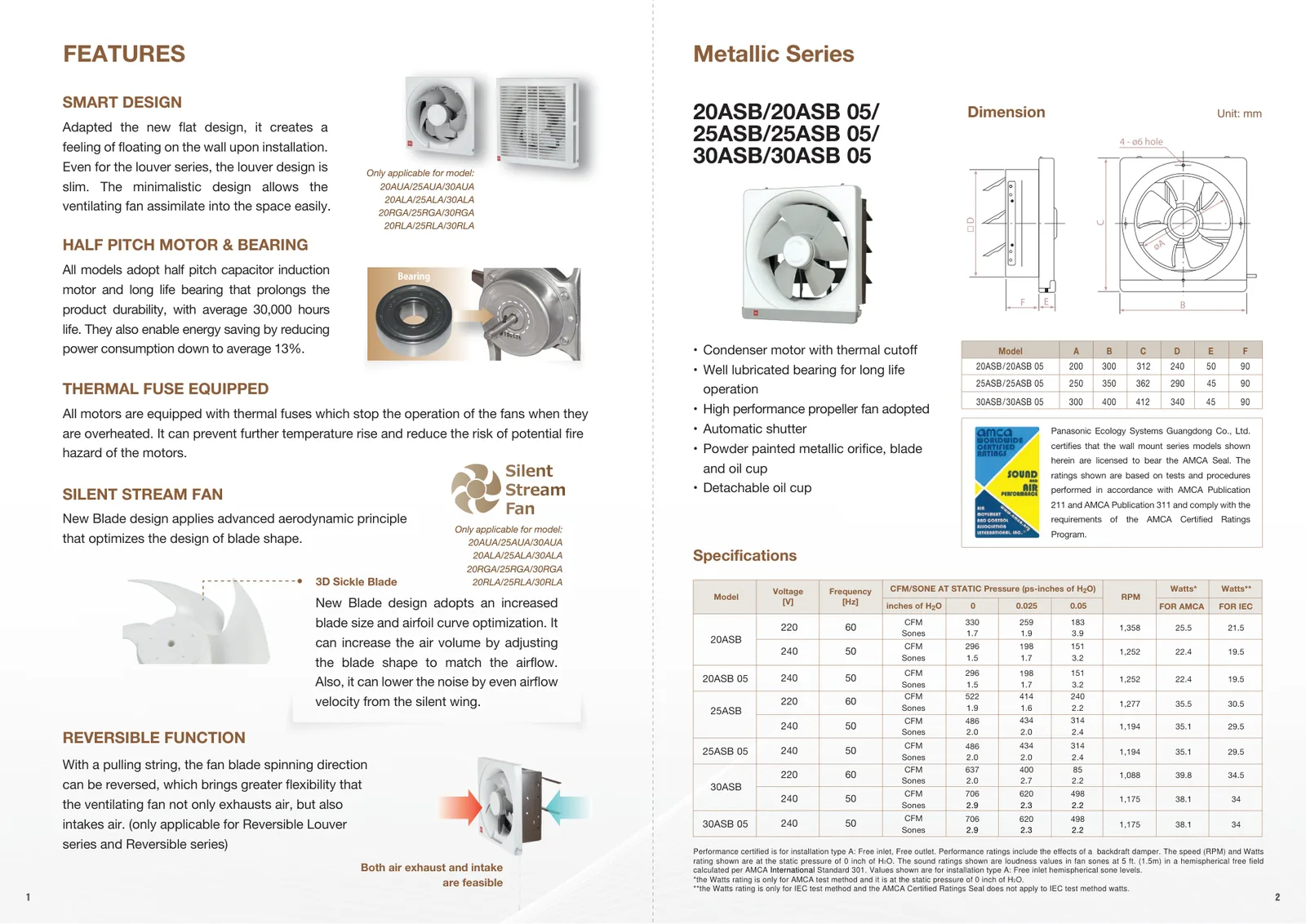

Metallic Series (ASB — Formed Metal Blades & Oil Cup)

Robust metallic wall exhaust fans equipped with formed steel blades, metal orifice, automatic shutter, and removable oil collection cup for pantry kitchens and light commercial spaces.

220V 60Hz Verified

Swipe horizontally to view all table columns.

Model	Size (cm/in)	Voltage	Frequency	Airflow (0 ps)	Sound (Sones)	Power (Watts)	Construction	Wall Cutout
20ASB (60Hz)	20 cm (8")	220 V	60 Hz	259 CFM (440 CMH)	1.7 sones	21.5 W	Metal blade & oil cup	250 × 250 mm
20ASB (50Hz)	20 cm (8")	240 V	50 Hz	198 CFM (336 CMH)	1.5 sones	19.5 W	Metal blade & oil cup	250 × 250 mm
25ASB (60Hz)	25 cm (10")	220 V	60 Hz	414 CFM (703 CMH)	2.0 sones	25.5 W	Metal blade & oil cup	300 × 300 mm
25ASB (50Hz)	25 cm (10")	240 V	50 Hz	434 CFM (737 CMH)	1.9 sones	30.5 W	Metal blade & oil cup	300 × 300 mm
30ASB (60Hz)	30 cm (12")	220 V	60 Hz	400 CFM (680 CMH)	2.0 sones	34.0 W	Metal blade & oil cup	350 × 350 mm
30ASB (50Hz)	30 cm (12")	240 V	50 Hz	620 CFM (1,053 CMH)	2.9 sones	34.5 W	Metal blade & oil cup	350 × 350 mm

AMCA & IEC Testing Conditions: Performance ratings certified are for Installation Type A: Free inlet, Free outlet with backdraft shutter. Air volume (CFM) and Watts* shown are established at 0 in. H2O static pressure in accordance with AMCA Publications 211/311. Sound ratings are loudness values in fan sones at 5 ft. (1.5m) in a hemispherical free field per AMCA International Standard 301. Watts** applies to standard IEC electrotechnical test methods.

Engineering Architecture

Silent Stream Aerodynamics & Thermal Fuse Safety

Engineered for quiet residential comfort, long-life bearing durability, and complete electrical safety.

Silent Stream 3D Sickle Blade

Advanced aerodynamic blade profile with increased surface area and optimized airfoil curve delivers higher air volume with smooth velocity, keeping noise as low as 1.0 sone.

Half-Pitch Capacitor Motor

High-efficiency half-pitch motor with well-lubricated sintered bush or ball bearings designed for ≥ 30,000 continuous operating hours with reduced energy consumption.

Thermal Fuse Protection

Every motor incorporates an automatic thermal cut-off and thermal fuse that stops fan operation if overheating occurs, eliminating fire risk.

Removable Oil Cup (ASB Series)

The metallic ASB series features a formed metal orifice and removable oil collection cup designed to trap cooking moisture and light oil droplets for easy cleaning.

Key Features

Engineered Features for Small-Room Wall Ventilation

Built for high air displacement, whisper-quiet operation, and effortless maintenance.

Plastic square wall mounted casing designed for direct exterior wall discharge

Automatic gravity shutter with soft plastic cushions to eliminate slamming noise

Available with slim architectural front louver (ALA / ALH series) for enhanced aesthetics

Equipped with half-pitch condenser motor delivering up to 13% energy savings

High-durability bearings rated for at least 30,000 hours of continuous operation

Built-in thermal fuse prevents motor overheating and enhances building safety

Certified 60Hz performance ratings from 122 to 655 CFM across 15cm to 30cm sizes

Simple tool-free front grille removal and detachable blades for effortless cleaning

Specifications

Category Technical Specifications

Complete engineering specifications for KDK wall mount propeller ventilating fans.

Swipe horizontally to compare all columns.

Specification	Engineering Details
Product Category	Wall Mounted Fan
Product Type	Plastic & Metallic Wall Mounted Exhaust Fan
Manufacturer / Series	KDK Company / Wall Mount Propeller Ventilating Fan Series
Model Families	Automatic Shutter (AUA/AUHT/AUH/15AAQ1), Louver (ALA/ALH/ALF), Reversible (RGA/RLA), Metallic (ASB)
Impeller Sizes	15 cm (6"), 20 cm (8"), 25 cm (10"), 30 cm (12")
Airflow Range (60Hz)	122 to 655 CFM (207 to 1,113 m³/h) across verified 60Hz models
Airflow Range (50Hz)	120 to 696 CFM (204 to 1,183 m³/h) on 50Hz-listed configurations
Electrical Supply	1~220V / 60Hz (Saudi Single-Phase); 220–240V / 50Hz baseline
Sound Loudness	1.0 to 3.6 sones at 0 in. H2O (AMCA 301 test method)
Motor Type	Half-pitch capacitor motor with thermal fuse cut-off
Bearing Life	Lubricated sintered bush / ball bearing rated for ≥ 30,000 hours
Backdraft Shutter	Automatic gravity shutter interlocked with motor operation
Rough-In Cutouts	175×175 mm (15cm), 250×250 mm (20cm), 300×300 mm (25cm), 350×350 mm (30cm)
Applications	Bathrooms, toilets, pantry kitchens, laundry closets, retail backrooms, small offices
Documentation	KDK wall-mount catalogue PDF, technical submittal datasheets, compliance certificates

Applications

KDK Plastic Wall Mounted Exhaust Fan Applications

Quiet direct wall air extraction across bathrooms, toilets, pantry kitchens, laundry closets, and offices.

Residential bathrooms

Removes: High humidity, shower steam, and stale odors in private washrooms

Commercial toilets

Removes: Stagnant air, odor buildup, and dampness in public and office restrooms

Pantry kitchens & prep

Removes: Cooking heat, steam, light oil vapor, and food aromas in pantry spaces

Laundry & utility closets

Removes: Warm moist air generated by clothes washing and drying equipment

Small retail backrooms

Removes: Trapped heat and stale air in stockrooms and commercial change areas

Private offices & clinics

Removes: Stuffy air in consultation rooms with whisper-quiet 1.0 to 2.5 sones sound

Service corridors

Removes: Stagnant heat and dampness in commercial back-of-house areas

MEP project procurement

Removes: Sized by exact model, 60Hz airflow, cutout dimensions, and shutter type

Application boundary: KDK plastic and metallic wall fans are designed for clean/ambient room air. For commercial cooking grease hoods, select a certified Upblast Roof Fan or Centrifugal Box Inline Fan. For high-pressure industrial factory wall ventilation, select a KDK Steel Square Exhaust Fan.

Selection support

What to Send for Correct Selection

Send the preferred KDK series (Shutter, Louver, or Metallic), impeller size, wall opening cutout dimensions, and project city in Saudi Arabia for fast quotation.

Exact KDK model series: Automatic Shutter (AUA/AUHT), Louver (ALA/ALH), or Metallic (ASB)

Nominal impeller size: 15 cm (6"), 20 cm (8"), 25 cm (10"), or 30 cm (12")

Required airflow (CFM / CMH) and room air change rate

Wall cutout rough-in opening (175×175 mm, 250×250 mm, 300×300 mm, or 350×350 mm)

Site electrical supply: Single-Phase 220V 60Hz

Front grille preference: standard automatic shutter or slim protective louver

Room application: bathroom, toilet, pantry kitchen, laundry, or office

For reversible models: review 50Hz catalogue status and confirm 60Hz requirement

Quantity required and delivery project city in Saudi Arabia

Technical submittal and commercial compliance requirements (CR, VAT, ISO, COC)

Kitchen confirmation: verify installation is room ventilation (NOT grease hood)

Accessories

KDK Plastic Wall Fan Accessory Options

Coordinate wall rough-in framing kits, external weather cowls, and replacement shutter louvers.

Timber and Steel Wall Rough-In Sub-Frames

Exterior Plastic Rain Louvers & Weather Hoods

Replacement Automatic Shutter Assemblies

Slim Front Protective Louver Grilles

Switched Fused Connection Units (FCU)

Removable Metallic Oil Collection Cups (ASB)

Downloads

Documents and Procurement Files

Authorized KDK product catalogs, dimensional cut sheets, and Saudi commercial compliance documentation.

KDK Wall-Mount Fan Catalogue PDFDownload PDF

KDK Wall Fan Technical SubmittalRequest Submittal

Cloud Electricals Company ProfileRequest Profile

Saudi Commercial Compliance (CR/VAT/COC)Request Compliance Docs

Engineering Selection & Schedule SheetRequest Selection Sheet

Related Ventilation Products

Explore other commercial wall, inline, and roof exhaust fan categories for project comparison.

KDK Steel Square Exhaust Fan

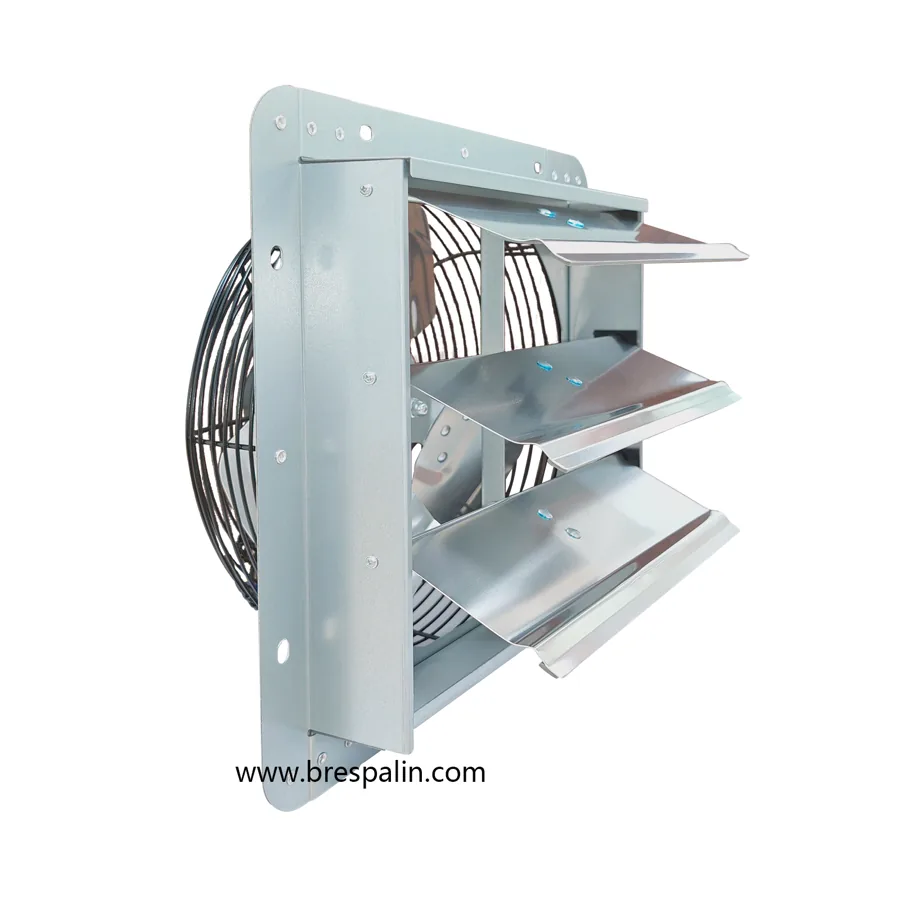

Wall Mounted Fan with Damper

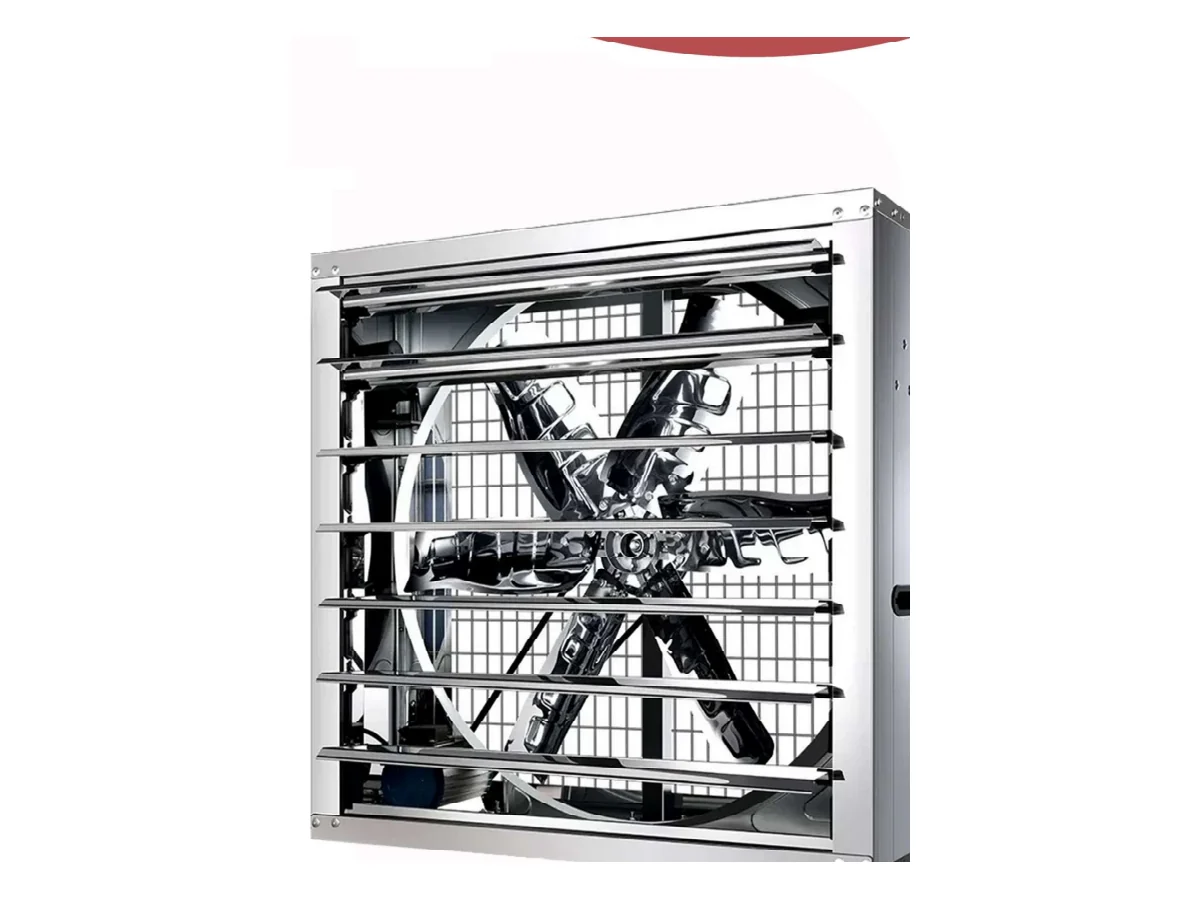

Wall Mounted Shutter Exhaust Fan

Plastic Inline Duct Fan

FAQ

KDK Plastic Wall Fan Questions

Answers for contractors, MEP engineers, homeowners, and facility procurement teams reviewing KDK plastic and metallic wall exhaust fan supply in Saudi Arabia.

The KDK range is divided into four distinct series: (1) Automatic Shutter Series (AUA, AUHT, AUH, 15AAQ1) with movable rear louvers; (2) Louver Series (ALA, ALH, ALF) with an architectural front grille; (3) Reversible Series (RGA, RLA) with pull-cord exhaust/intake function; and (4) Metallic Series (ASB) with steel blades and a removable oil collection cup.

Quotation Request

Request KDK Plastic Wall Exhaust Fan Quotation

Send your required series (Shutter, Louver, or Metallic), fan size, wall opening cutout, quantity, and project city in Saudi Arabia.

WhatsApp Instead

Name / CompanyPhone / WhatsAppProject CityQuantityRoom Type & Preferred SeriesVoltageFan Size & Preferred ModelRequired Airflow (CFM) & Room DimensionsWall Opening Cutout Dimensions (E x E mm)Front Style & Frequency ConfirmationApplicationRequirement DetailsI agree that Cloud Electricals may use these details to respond to my inquiry as described in the Privacy Policy and Website Terms.

WhatsApp Instead

KDK Plastic Wall Mounted Exhaust Fan

What is the KDK plastic wall mounted exhaust fan?

Is the KDK plastic wall fan suitable for your room?

KDK Wall-Mount Exhaust Fan Families & Verified Ratings

Automatic Shutter Series (AUA / AUHT / AUH / 15AAQ1)

Automatic Shutter Louver Series (ALA / ALH / ALF)

Reversible Series (RGA & RLA — 50Hz Catalogue Reference)

Metallic Series (ASB — Formed Metal Blades & Oil Cup)

Silent Stream Aerodynamics & Thermal Fuse Safety

Engineered Features for Small-Room Wall Ventilation

Category Technical Specifications

KDK Plastic Wall Mounted Exhaust Fan Applications

Residential bathrooms

Commercial toilets

Pantry kitchens & prep

Laundry & utility closets

Small retail backrooms

Private offices & clinics

Service corridors

MEP project procurement

What to Send for Correct Selection

KDK Plastic Wall Fan Accessory Options

Documents and Procurement Files

Related Ventilation Products

KDK Plastic Wall Fan Questions

What are the main families in the KDK plastic wall exhaust fan range?

Are verified 60Hz models available for Saudi Arabia projects?

Why are the reversible models (RGA/RLA) flagged with a 50Hz warning?

What is the difference between AMCA Watts and IEC Watts?

Can KDK plastic wall fans be used in commercial kitchens?

What wall cutout size is required for each fan size?

How loud are KDK plastic wall exhaust fans?

What safety features are built into the motor?

How does the automatic shutter operate?

What documentation is available for engineering approval?

Request KDK Plastic Wall Exhaust Fan Quotation
