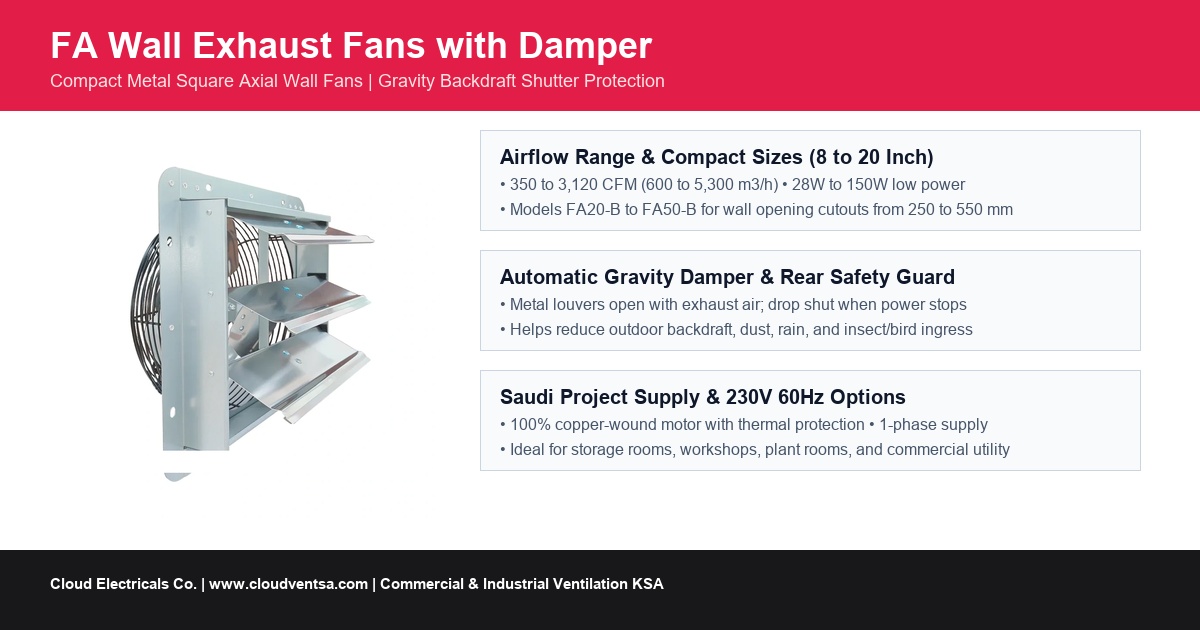

FA Wall Mounted Exhaust Fan with Damper
Compact square metal axial exhaust fans with automatic gravity shutter louvers and rear safety guards for commercial rooms, workshops, plant rooms, storage spaces, and utility ventilation in Saudi Arabia.
What is an FA wall mounted fan with damper?
An FA series wall mounted exhaust fan is a compact square metal axial ventilator equipped with automatic gravity louvers that open under exhaust airflow and drop shut when stopped. Sized using Room Volume (cu. ft) × Target ACH ÷ 60 for low static pressure wall openings (< 30 Pa), delivering 350 to 3,120 CFM.
Is an FA wall fan with damper suitable for your space?
Evaluate room volume, heat and odor sources, and external wall exposure before selecting from the FA20-B to FA50-B range.

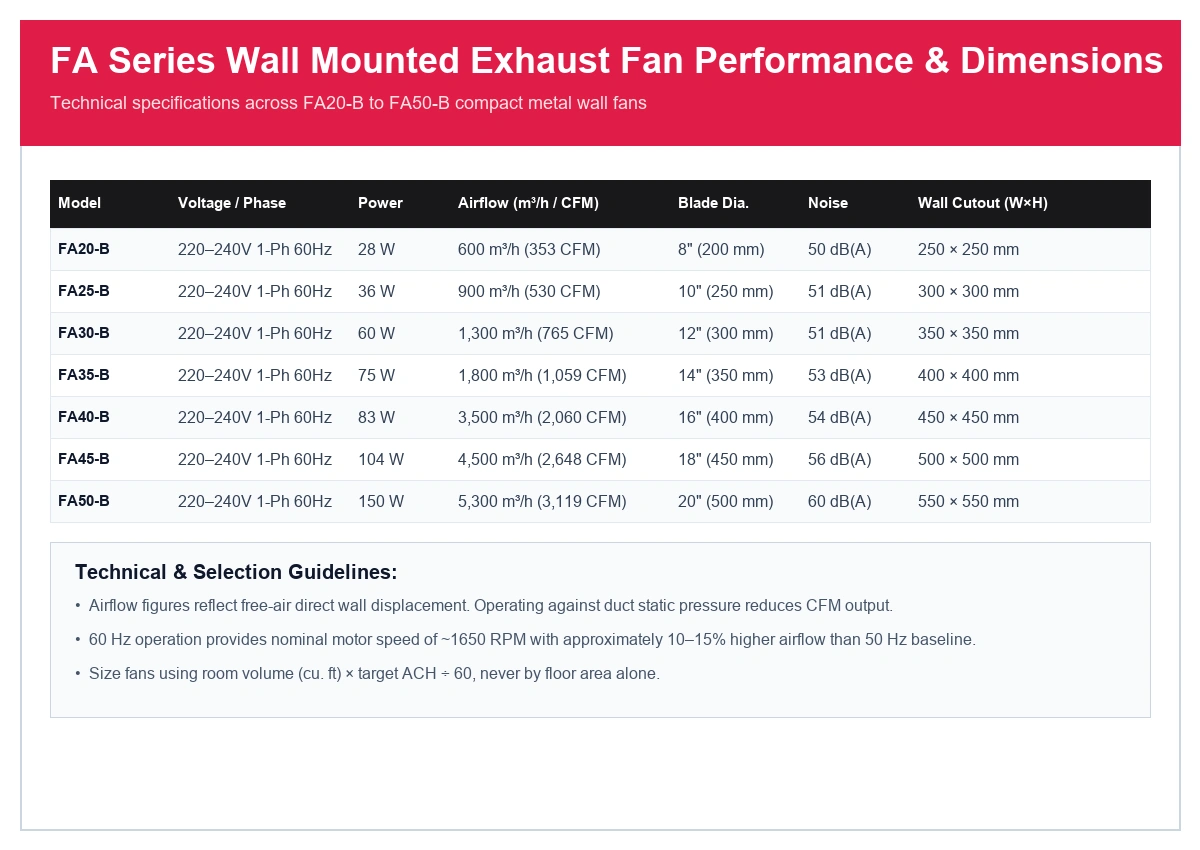

FA Series Wall Exhaust Fan Performance & Dimensions
Complete specifications across 8-inch to 20-inch metal wall fans with integrated gravity backdraft dampers.
Swipe horizontally to compare all columns.
| Model | Blade Diameter | Voltage / Phase | Motor Power | Airflow (m³/h / CFM) | Noise Level | Wall Cutout (W×H) | Frame Depth | Net Weight |
|---|---|---|---|---|---|---|---|---|
| FA20-B | 8" (200 mm) | 220–240V 1-Ph 60Hz | 28 W | 600 m³/h (353 CFM) | 50 dB(A) | 250 × 250 mm | 145 mm | 2.8 kg |
| FA25-B | 10" (250 mm) | 220–240V 1-Ph 60Hz | 36 W | 900 m³/h (530 CFM) | 51 dB(A) | 300 × 300 mm | 155 mm | 3.4 kg |
| FA30-B | 12" (300 mm) | 220–240V 1-Ph 60Hz | 60 W | 1,300 m³/h (765 CFM) | 51 dB(A) | 350 × 350 mm | 165 mm | 4.2 kg |
| FA35-B | 14" (350 mm) | 220–240V 1-Ph 60Hz | 75 W | 1,800 m³/h (1,059 CFM) | 53 dB(A) | 400 × 400 mm | 175 mm | 5.1 kg |
| FA40-B | 16" (400 mm) | 220–240V 1-Ph 60Hz | 83 W | 3,500 m³/h (2,060 CFM) | 54 dB(A) | 450 × 450 mm | 185 mm | 6.3 kg |
| FA45-B | 18" (450 mm) | 220–240V 1-Ph 60Hz | 104 W | 4,500 m³/h (2,648 CFM) | 56 dB(A) | 500 × 500 mm | 195 mm | 7.6 kg |
| FA50-B | 20" (500 mm) | 220–240V 1-Ph 60Hz | 150 W | 5,300 m³/h (3,119 CFM) | 60 dB(A) | 550 × 550 mm | 215 mm | 9.2 kg |

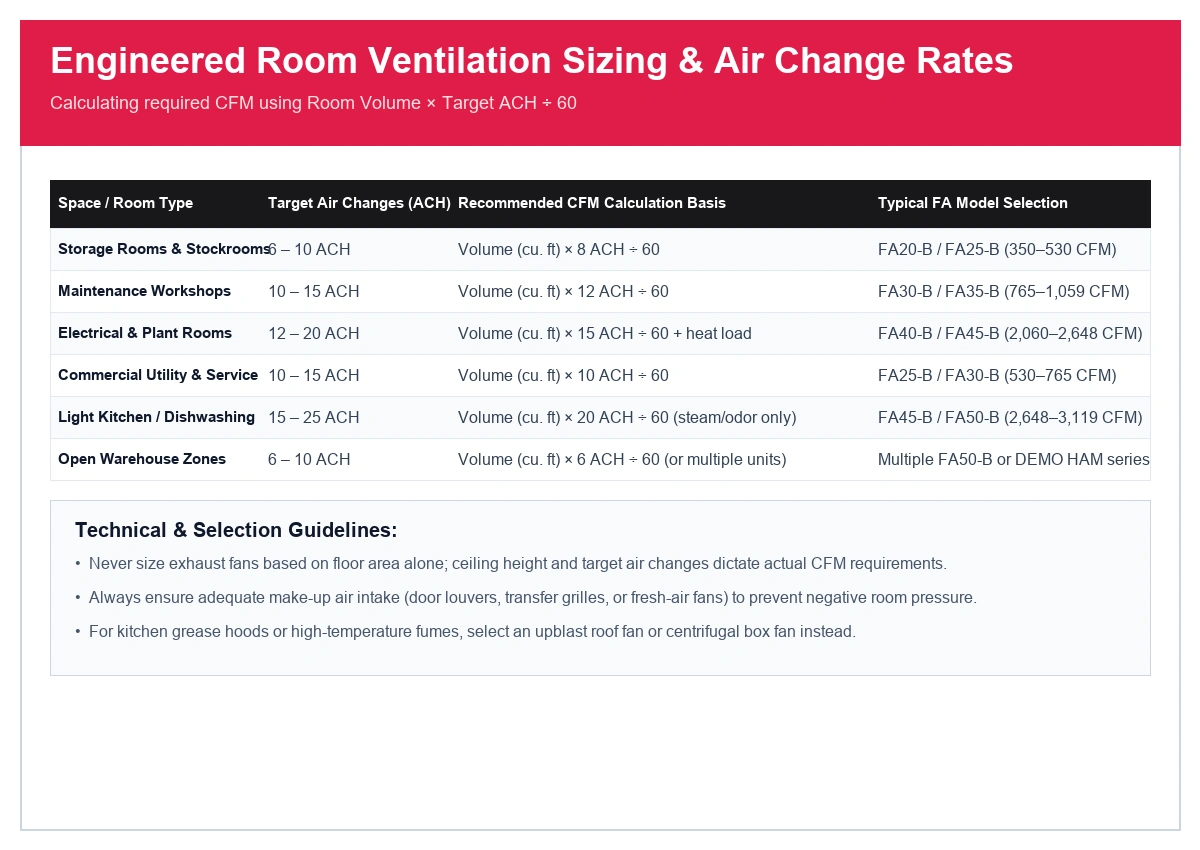

Engineered Room Ventilation Sizing & Air Change Rates (ACH)
Calculate exact exhaust CFM using internal room volume and target air turnover rates instead of unreliable floor area estimates.

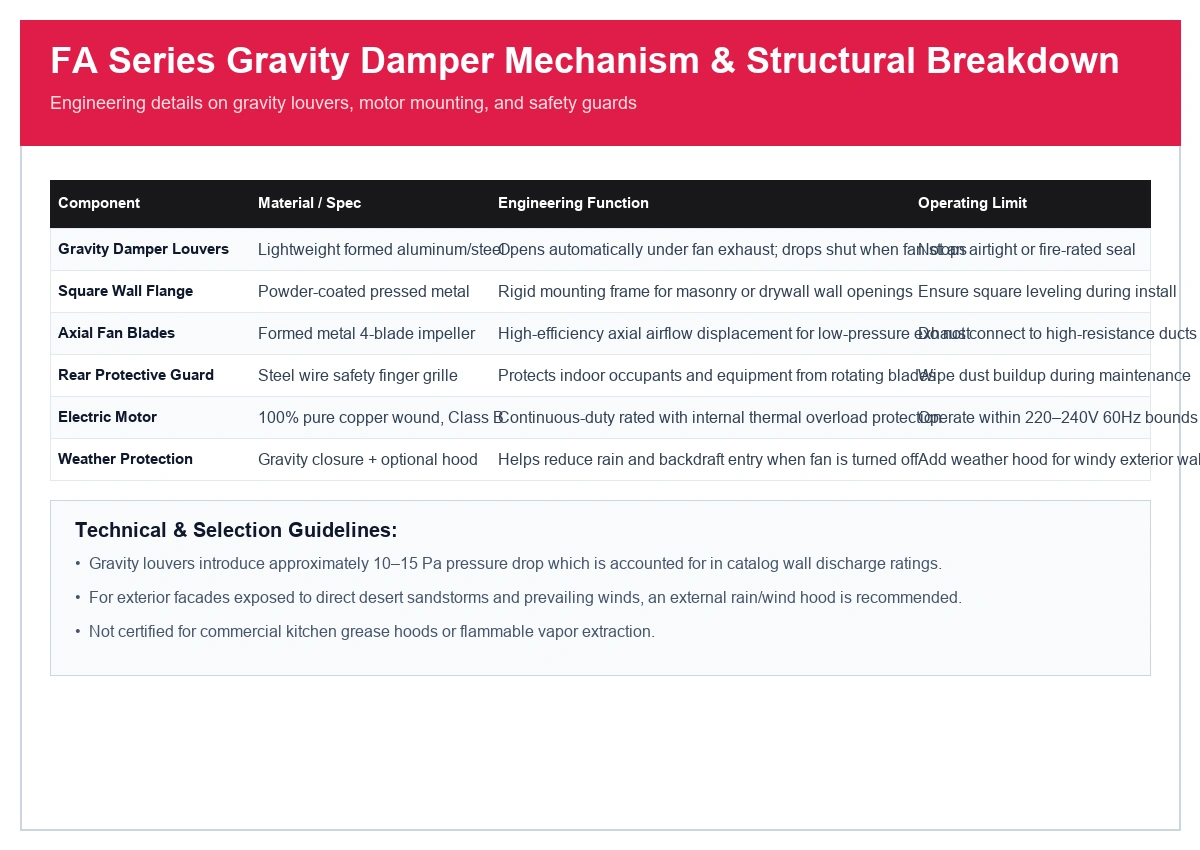

Gravity Damper Operation & Weather Protection
Understand the mechanical opening and closing behavior of integrated gravity louvers and external weather protection needs.
Engineered Features for Commercial Wall Exhaust
Built for reliable room air extraction with low power consumption and robust mechanical construction.
Category Technical Specifications
Complete engineering specifications for FA / FAB wall-mounted exhaust fans with gravity dampers.
Swipe horizontally to compare all columns.
| Specification | Engineering Details |
|---|---|
| Product Category | Wall Mounted Fan |
| Product Type | Wall Mounted Fan with Damper / Wall Exhaust Fan with Shutter |
| Model Series | FA / FAB Standard Square Metal Series |
| Installation | Wall-mounted direct displacement opening |
| Model Range | FA20-B, FA25-B, FA30-B, FA35-B, FA40-B, FA45-B, FA50-B |
| Blade Sizes | 8" (200 mm), 10" (250 mm), 12" (300 mm), 14" (350 mm), 16" (400 mm), 18" (450 mm), 20" (500 mm) |
| Airflow Range | 350 to 3,120 Free-Air CFM (600 to 5,300 m³/h) |
| Electrical Supply | 220–240V / 60 Hz / 1-Phase (Saudi Standard 60Hz) |
| Motor Power Range | 28 W to 150 W (Energy Efficient) |
| Motor Construction | 100% pure copper winding, Class B insulation, thermal overload protector |
| Sound Level Range | 50 to 60 dB(A) at 1 meter |
| Damper Mechanism | Automatic gravity-drop aluminum/steel shutter louvers |
| Safety Protection | Rear steel wire finger protection guard (inlet side) |
| Casing Material | Heavy-gauge pressed steel with anti-corrosion powder coat |
| Operating Pressure Duty | Direct wall displacement (< 30 Pa static pressure resistance) |
| Applications | Storage rooms, workshops, plant rooms, commercial utility, restrooms, light kitchen prep |
| Documentation | Authorized Cloud Electricals PDF catalog, submittal datasheets, compliance documents |
FA Wall Mounted Exhaust Fan Applications
Direct wall air extraction for storage rooms, maintenance workshops, plant rooms, and commercial utility spaces.
What to Send for Correct Selection
Share your room dimensions, target air change rate, and wall opening framing details and our technical sales team will calculate exact CFM and prepare a quotation.
Wall Exhaust Fan Accessory Options
Coordinate wall mounting frames, external rain hoods, speed controllers, and thermostatic switches.
Documents and Procurement Files
Authorized product catalogs, room ventilation sizing submittal sheets, and Saudi commercial compliance documentation.
Related Ventilation Products
Explore other commercial wall, inline, and roof exhaust fan categories for project comparison.
Wall Fan with Damper Questions
Answers for contractors, MEP engineers, plant managers, and facility procurement teams reviewing FA wall exhaust fan options across Saudi Arabia.
