TAT LDSF High Pressure Series

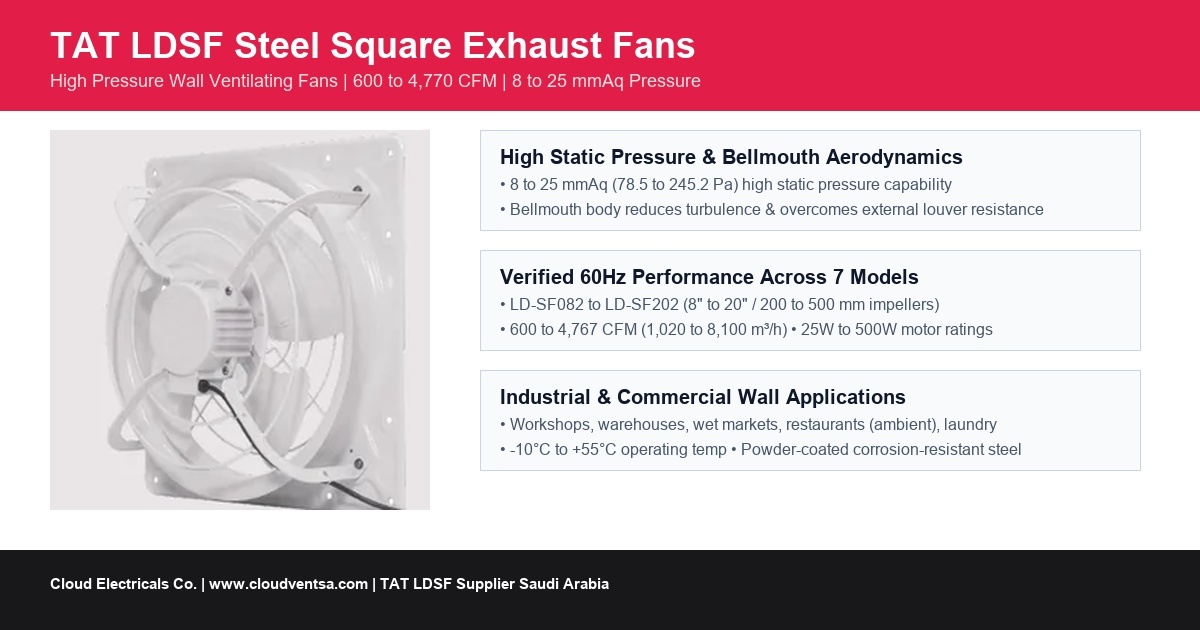

TAT LDSF Steel Square Exhaust Fan

High-pressure commercial and industrial wall exhaust fans featuring an aerodynamic bellmouth casing and precision steel impeller for workshops, warehouses, restaurant dining/prep, wet markets, and laundry facilities across Saudi Arabia.

Request Quote on WhatsAppCall Technical SalesDownload TAT LDSF Catalog
In brief

What is the TAT LDSF steel square exhaust fan?

The TAT LDSF series is a Korean-engineered steel square wall exhaust fan designed to develop high static pressure (8 to 25 mmAq / 78.5 to 245.2 Pa) and deliver 600 to 4,770 CFM at 60Hz. It features an aerodynamic bellmouth inlet and continuous-duty motor (-10°C to +55°C) to maintain stable airflow through gravity shutters, rain louvers, and short ductwork.

TAT LDSF high pressure steel square exhaust fan Korean manufacturer performance data and curve sheet
TAT LDSF Performance Sheet
220–240V / 60 Hz 1-phase supply
8 to 25 mmAq high static pressure
Saudi Arabia commercial project supply
Fan Category
High Pressure Steel Square Exhaust Fan
Product Series
TAT LDSF / LD-SF Series (Made in Korea)
Airflow Range (60Hz)
600 to 4,767 CFM (1,020 to 8,100 m³/h)
Static Pressure Range
8 to 25 mmAq (78.5 to 245.2 Pa)
Impeller Sizes
8" to 20" (200 mm to 500 mm)
Electrical Supply
220–240V / 60 Hz / 1-Phase (4-Pole Motor)
Application Check

Is the TAT LDSF series suitable for your facility?

Evaluate required static pressure, wall opening cutout, ambient operating conditions, and airstream type before finalizing your selection.

Good fit
  • Commercial workshops, fabrication bays, and industrial maintenance areas
  • Warehouse storage bays requiring wall exhaust through external gravity shutters
  • Wet markets, produce/fish distribution halls, and high-humidity utility rooms
  • Restaurant dining rooms, dishwashing areas, and general food prep rooms (ambient)
Confirm first
  • Operating static pressure against exterior louvers or short ductwork (< 80–245 Pa)
  • Wall opening rough-in cutout dimensions (260×260 mm up to 575×575 mm)
  • Continuous ambient temperature within manufacturer bounds (-10°C to +55°C)
  • Adequate fresh make-up air intake path (door louvers or transfer grilles)
  • 220–240V 60Hz 1-phase electrical power connection
Use another documented fan
  • Commercial kitchen grease exhaust hoods (select Upblast Roof Fan or Centrifugal Box Fan)
  • High-CFM agricultural poultry sheds and open barns (select DEMO HAM Series)
  • Long high-resistance ducted ventilation networks (select Inline Duct Fan or Centrifugal Blower)
  • Explosion-proof or ATEX-classified flammable solvent or spray painting booths
Important application note: TAT LDSF series steel square wall fans are high-pressure wall exhaust units engineered to overcome system resistance from gravity shutters, exterior louvers, and short ductwork (8 to 25 mmAq). They are suitable for ambient restaurant dining and prep ventilation, but are NOT certified for commercial kitchen grease exhaust hoods.
Model Performance Range

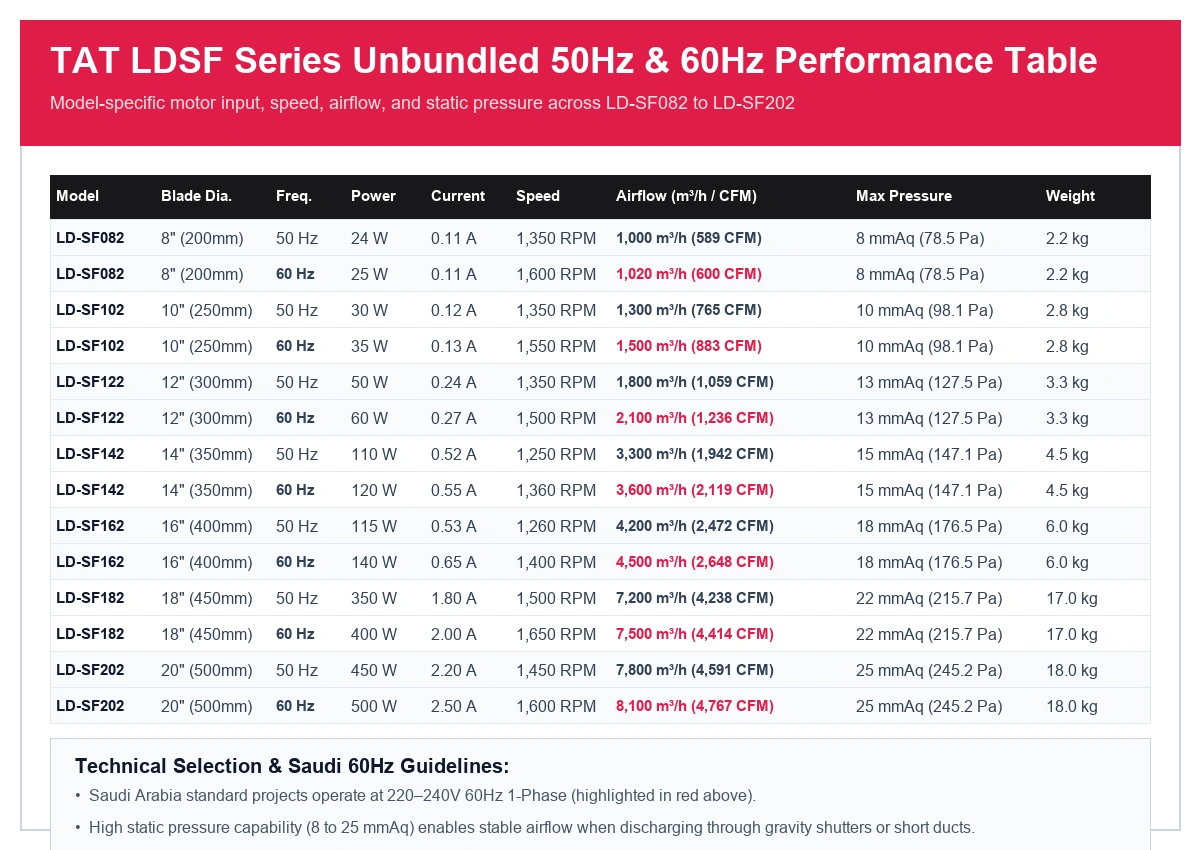

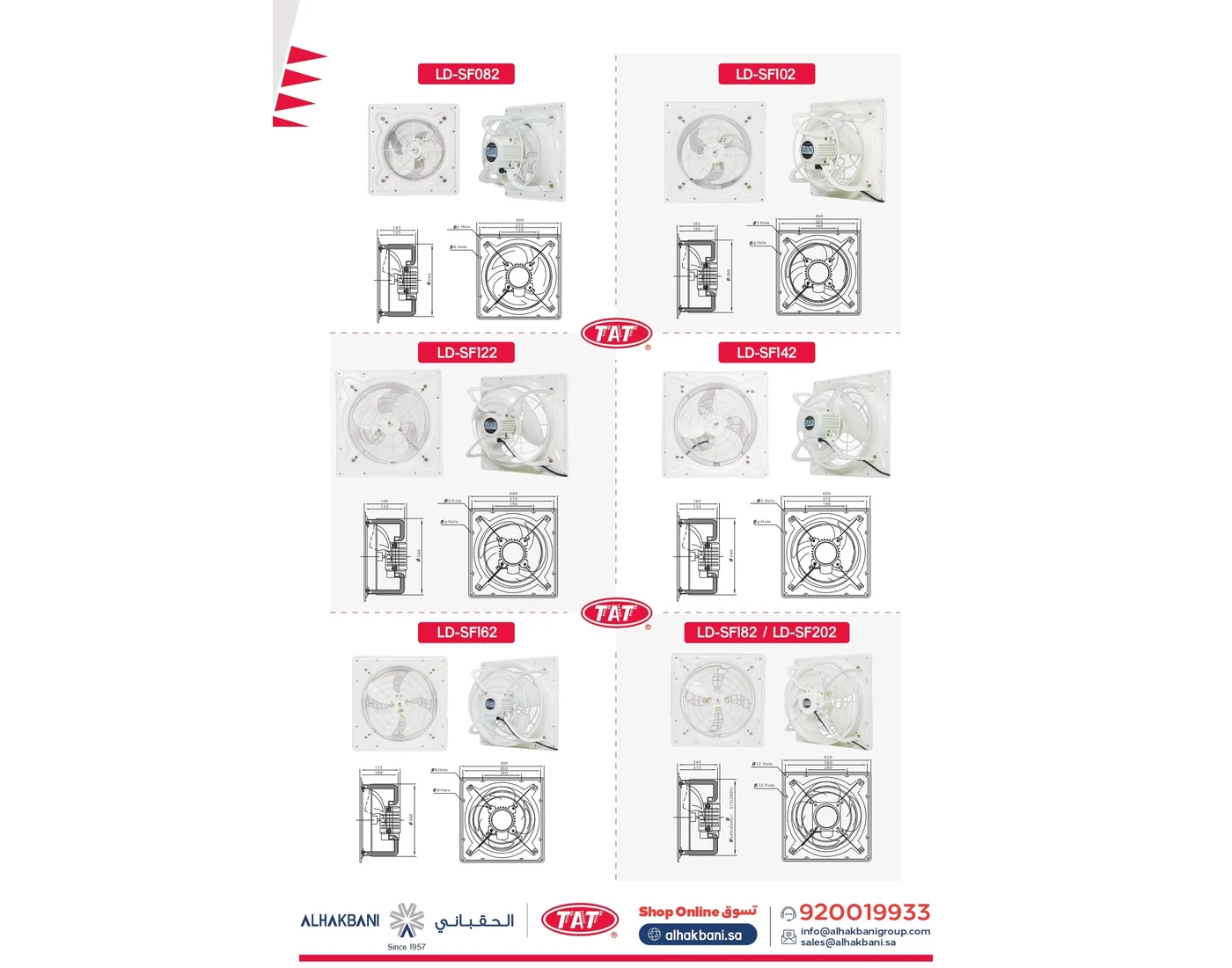

TAT LDSF Unbundled 50Hz & 60Hz Performance Table

Complete specifications across LD-SF082 to LD-SF202 with unbundled 50Hz and 60Hz motor wattage, speed, airflow, and static pressure.

Swipe horizontally to compare all columns.

ModelImpeller SizeFrequencyVoltage / PoleInput PowerCurrentMotor SpeedAirflow (m³/h / CFM)Max Static PressureNet WeightWall Cutout (W×H)
LD-SF0828" (200 mm)50 Hz220–240V 4P24 W0.11 A1,350 RPM1,000 m³/h (589 CFM)8 mmAq (78.5 Pa)2.2 kg260 × 260 mm
LD-SF0828" (200 mm)60 Hz220–240V 4P25 W0.11 A1,600 RPM1,020 m³/h (600 CFM)8 mmAq (78.5 Pa)2.2 kg260 × 260 mm
LD-SF10210" (250 mm)50 Hz220–240V 4P30 W0.12 A1,350 RPM1,300 m³/h (765 CFM)10 mmAq (98.1 Pa)2.8 kg300 × 300 mm
LD-SF10210" (250 mm)60 Hz220–240V 4P35 W0.13 A1,550 RPM1,500 m³/h (883 CFM)10 mmAq (98.1 Pa)2.8 kg300 × 300 mm
LD-SF12212" (300 mm)50 Hz220–240V 4P50 W0.24 A1,350 RPM1,800 m³/h (1,059 CFM)13 mmAq (127.5 Pa)3.3 kg360 × 360 mm
LD-SF12212" (300 mm)60 Hz220–240V 4P60 W0.27 A1,500 RPM2,100 m³/h (1,236 CFM)13 mmAq (127.5 Pa)3.3 kg360 × 360 mm
LD-SF14214" (350 mm)50 Hz220–240V 4P110 W0.52 A1,250 RPM3,300 m³/h (1,942 CFM)15 mmAq (147.1 Pa)4.5 kg360 × 360 mm
LD-SF14214" (350 mm)60 Hz220–240V 4P120 W0.55 A1,360 RPM3,600 m³/h (2,119 CFM)15 mmAq (147.1 Pa)4.5 kg360 × 360 mm
LD-SF16216" (400 mm)50 Hz220–240V 4P115 W0.53 A1,260 RPM4,200 m³/h (2,472 CFM)18 mmAq (176.5 Pa)6.0 kg465 × 465 mm
LD-SF16216" (400 mm)60 Hz220–240V 4P140 W0.65 A1,400 RPM4,500 m³/h (2,648 CFM)18 mmAq (176.5 Pa)6.0 kg465 × 465 mm
LD-SF18218" (450 mm)50 Hz220–240V 4P350 W1.80 A1,500 RPM7,200 m³/h (4,238 CFM)22 mmAq (215.7 Pa)17.0 kg575 × 575 mm
LD-SF18218" (450 mm)60 Hz220–240V 4P400 W2.00 A1650 RPM7,500 m³/h (4,414 CFM)22 mmAq (215.7 Pa)17.0 kg575 × 575 mm
LD-SF20220" (500 mm)50 Hz220–240V 4P450 W2.20 A1,450 RPM7,800 m³/h (4,591 CFM)25 mmAq (245.2 Pa)18.0 kg575 × 575 mm
LD-SF20220" (500 mm)60 Hz220–240V 4P500 W2.50 A1,600 RPM8,100 m³/h (4,767 CFM)25 mmAq (245.2 Pa)18.0 kg575 × 575 mm
Catalog & Saudi 60Hz Note: Performance values are based on authentic TAT / Alhakbani LDSF Korean manufacturer catalog ratings. For Saudi Arabia projects, 220–240V 60Hz 1-phase ratings apply (highlighted in red above). Operating at 60Hz increases nominal motor RPM and provides higher airflow against rated static pressure (8 to 25 mmAq / 78.5 to 245.2 Pa). Continuous operating temperature: -10°C to +55°C.
Aerodynamics & Pressure Head

Bellmouth Aerodynamics & High Static Pressure Head (8 to 25 mmAq)

Deep-drawn inlet curvature and high-pressure impeller engineering ensure stable airflow under resistance.

Bellmouth Aerodynamic Inlet
Deep-drawn bellmouth frame eliminates sharp inlet edges, reducing entry vortex separation and generating higher pressure recovery with lower operating turbulence.

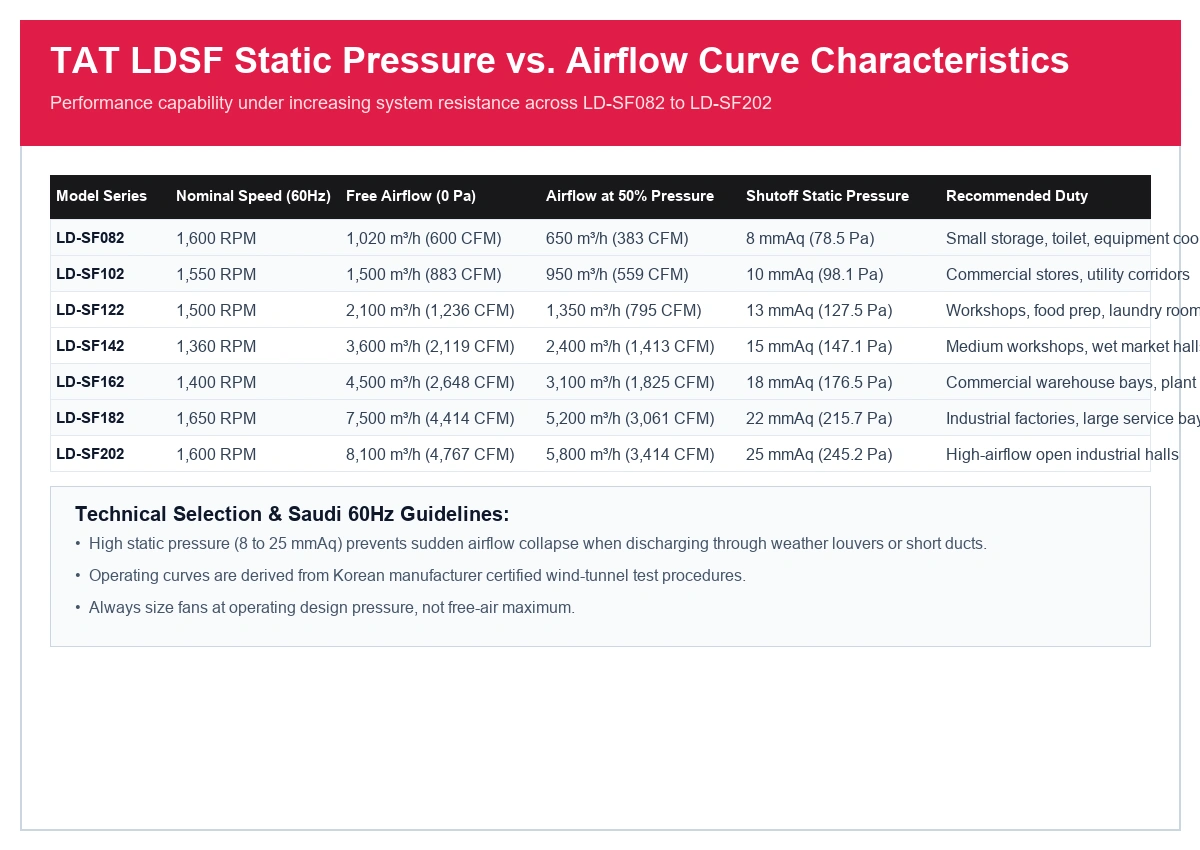

High Static Pressure (8 to 25 mmAq)
Rigid formed steel impeller blades develop high pressure heads (78.5 to 245.2 Pa), preventing airflow collapse when discharging through gravity shutters or insect screens.
LDSF Shutter Integration
Automatic gravity-drop shutter louvers open smoothly under fan velocity pressure and drop closed when turned off to prevent outdoor backdraft, dust, and rain entry.
Saudi 60 Hz Motor Optimization
Heavy-duty 4-pole motor operates at 1360 to 1650 RPM on Saudi 60Hz power, delivering 600 to 4,767 CFM across 7 distinct sizes from 8-inch to 20-inch.
Key Features

Engineered Features for High-Pressure Wall Ventilation

Built for demanding commercial and industrial air extraction with Korean motor technology and rigid steel construction.

High-pressure steel square wall ventilating fan engineered for commercial and industrial exhaust duty

Deep-drawn aerodynamic bellmouth body design minimizes intake vortex losses and operating noise

Precision-formed steel impeller blades develop up to 25 mmAq (245.2 Pa) maximum static pressure

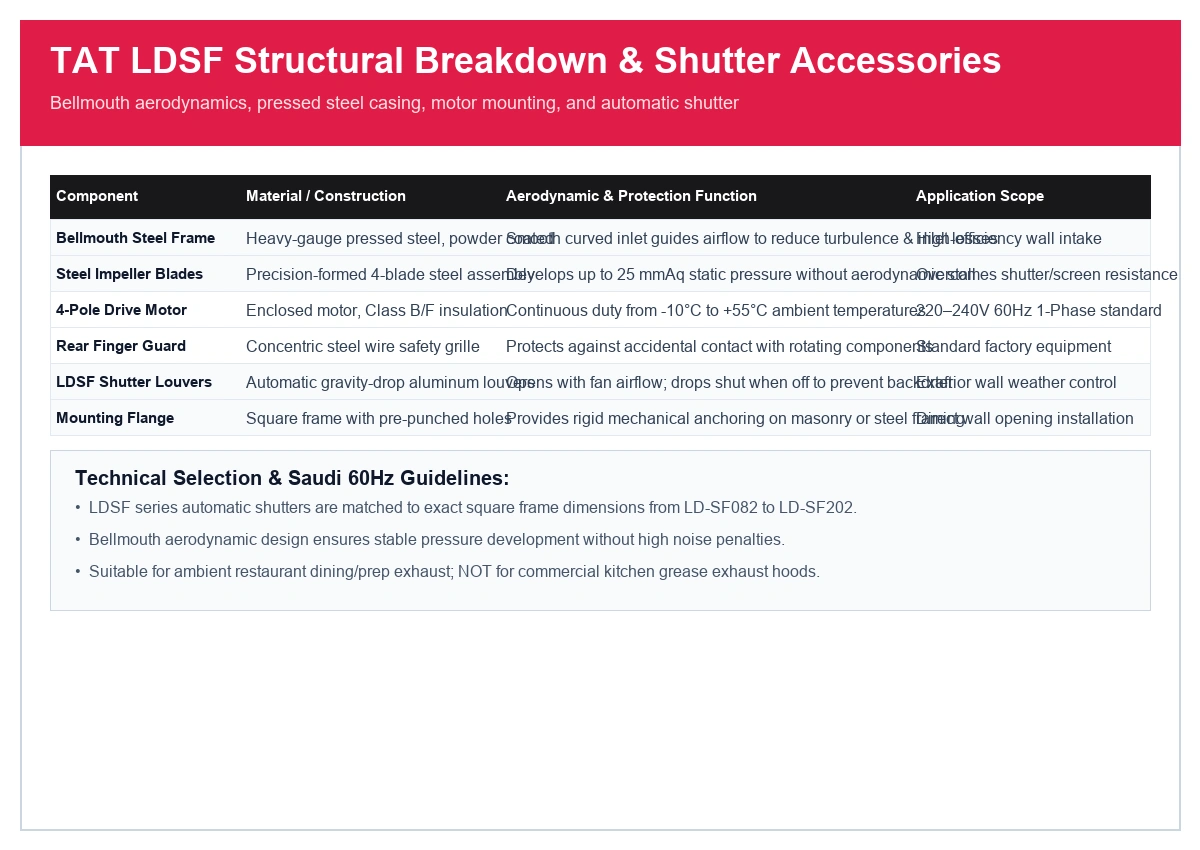

Heavy-gauge steel casing with corrosion-resistant powder-coat finish for durable long-term performance

Continuous-duty 4-pole electric motor rated for wide ambient temperature range from -10°C to +55°C

Optimized for Saudi Arabian 220–240V 60Hz 1-phase electrical power with unbundled frequency ratings

Integrated concentric steel wire rear safety finger guard protects personnel and rotating components

Matched LDSF automatic shutter accessories available for external weather and backdraft protection

Specifications

Category Technical Specifications

Complete engineering specifications for TAT LDSF series high-pressure steel square exhaust fans.

Swipe horizontally to compare all columns.

SpecificationEngineering Details
Product CategoryWall Mounted Fan
Product TypeHigh Pressure Steel Square Exhaust Fan
Model SeriesTAT LDSF / LD-SF Series (Made in Korea)
InstallationWall mounted direct displacement opening
Model RangeLD-SF082, LD-SF102, LD-SF122, LD-SF142, LD-SF162, LD-SF182, LD-SF202
Impeller Sizes8" (200 mm), 10" (250 mm), 12" (300 mm), 14" (350 mm), 16" (400 mm), 18" (450 mm), 20" (500 mm)
Airflow Range (60Hz)600 to 4,767 CFM (1,020 to 8,100 m³/h)
Static Pressure Range8 to 25 mmAq (78.5 to 245.2 Pa)
Electrical Supply220–240V / 60 Hz / 1-Phase (Saudi Standard 60Hz)
Motor Poles & Type4-Pole continuous-duty electric motor with thermal protection
Operating Temperature-10°C to +55°C continuous ambient temperature
Casing & Blade MaterialHeavy-gauge pressed steel with anti-corrosion powder coating
Inlet AerodynamicsContoured aerodynamic bellmouth intake
Safety ProtectionConcentric steel wire rear safety finger guard (inlet side)
Optional AccessoriesLDSF automatic shutter, wall sleeve frame, speed controller, weather hood
ApplicationsWorkshops, warehouses, wet markets, restaurant dining/prep, laundry rooms, plant areas
DocumentationAuthorized Cloud Electricals PDF catalog, submittal datasheets, compliance certificates
Applications

TAT LDSF Wall Exhaust Fan Applications

High-pressure air extraction across commercial workshops, industrial warehouses, wet markets, and restaurant dining/prep rooms.

Commercial workshops

Removes: Heat buildup, light fabrication fumes, and dust-laden air from maintenance bays

Industrial warehouses

Removes: Stagnant heat and stale air across storage aisles through exterior wall openings

Wet markets & produce halls

Removes: Moisture, humidity, and food odors in demanding commercial retail environments

Restaurant dining & prep areas

Removes: Dining room heat, prep area moisture, and general ambient odors (NOT grease hoods)

Commercial laundry rooms

Removes: Equipment heat dissipation, steam, and high humidity from washing and drying areas

Electrical & plant rooms

Removes: Heat generated by transformers, switchgear, and elevator equipment

Agricultural ventilation

Removes: Humidity and stagnant air in farm utility sheds and livestock service areas

MEP project procurement

Removes: Sized by required CFM at static pressure, wall opening cutout, and 60Hz power supply

Application boundary: TAT LDSF fans are high-pressure wall exhaust units. For commercial kitchen grease hoods, select a certified metal Centrifugal Box Inline Fan or Upblast Roof Fan. For high-CFM agricultural poultry sheds or greenhouses, select the DEMO HAM Shutter Exhaust Fan.
Selection support

What to Send for Correct Selection

Send the LDSF model number, required airflow at static pressure, wall cutout dimensions, and project city in Saudi Arabia for technical review and quotation.

01

Required model: LD-SF082, LD-SF102, LD-SF122, LD-SF142, LD-SF162, LD-SF182, or LD-SF202

02

Required airflow at design static pressure (m³/h or CFM against 8 to 25 mmAq)

03

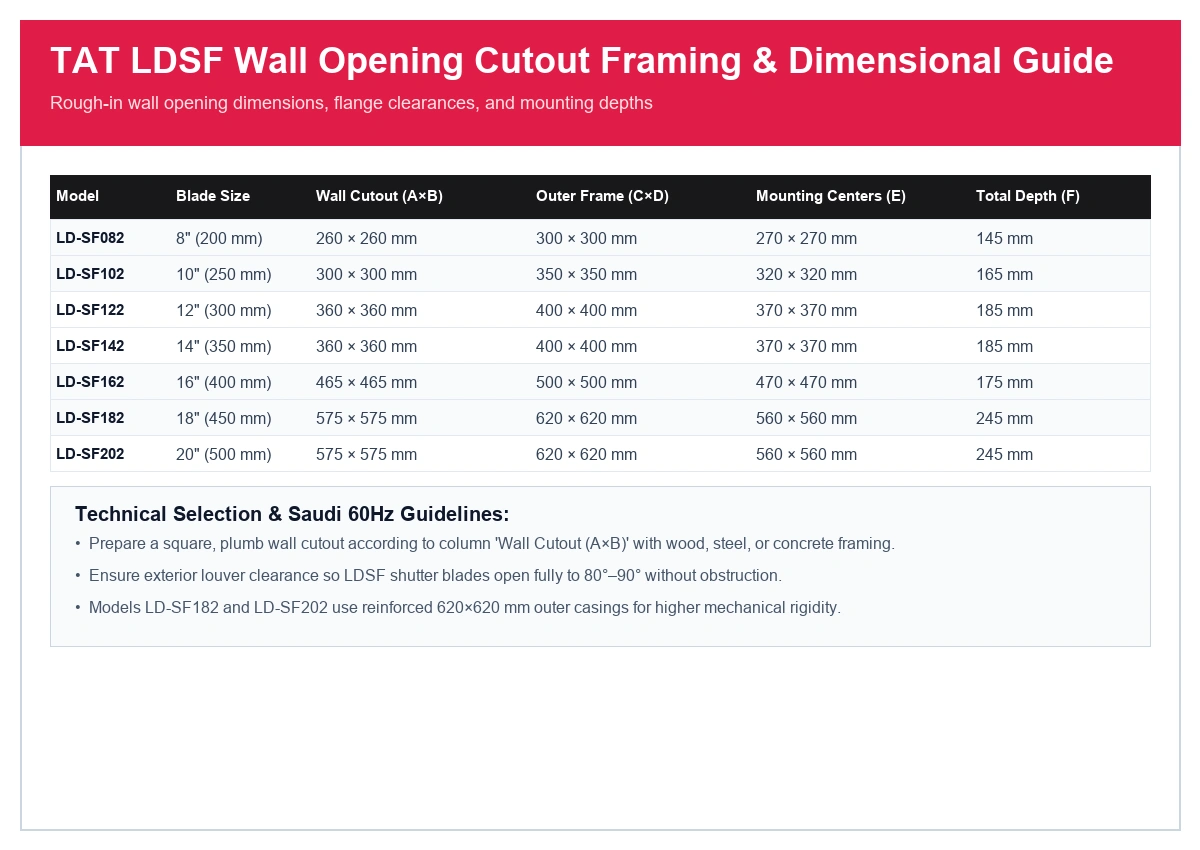

Wall cutout opening size: 260×260 mm (LD-SF082) up to 575×575 mm (LD-SF202)

04

Application environment: workshop, warehouse, wet market, laundry room, or restaurant dining/prep

05

Airstream condition: ambient temperature bounds (-10°C to +55°C) and non-hazardous verification

06

Electrical power supply: verified 220–240V 60Hz 1-phase connection

07

LDSF shutter accessory requirement for exterior backdraft and weather protection

08

Wall construction and mounting frame details (masonry, steel framing, sandwich panel)

09

Control method: manual on/off wall switch, rotary speed controller, or thermostat

10

Required quantity and delivery project city in Saudi Arabia

11

Technical submittal and compliance document requirement (CR, VAT, ISO, COC)

Accessories

LDSF Wall Exhaust Fan Accessory Options

Coordinate LDSF automatic gravity shutters, wall sleeve liners, speed controllers, and external weather hoods.

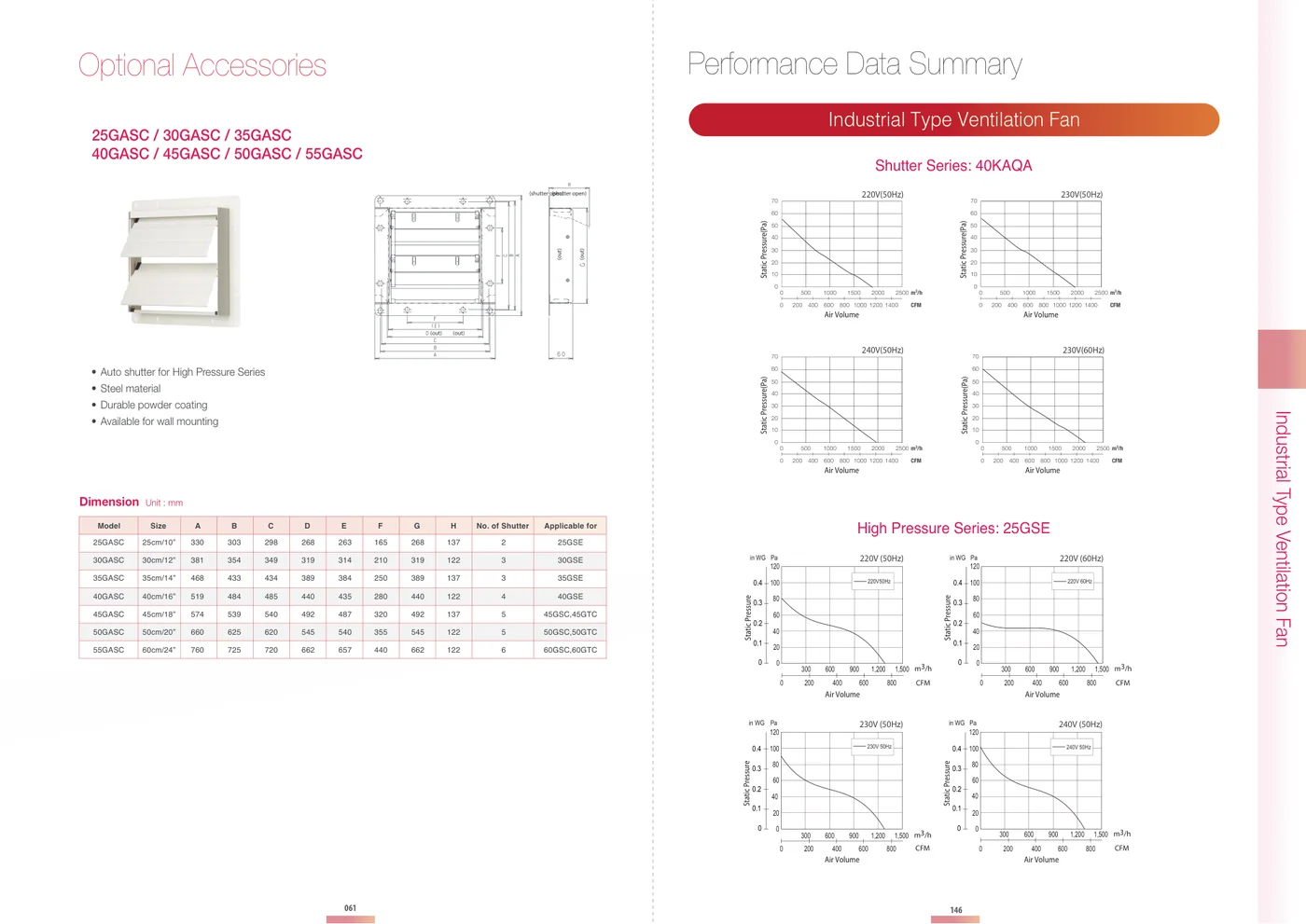

LDSF Automatic Gravity Shutter Louvers

Wall Opening Framing & Sleeve Liner Kits

External Sheet Metal Weather Cowls & Rain Hoods

Rotary On/Off Speed Controllers & Wall Switches

Thermostatic Automatic Temperature Control Switches

Exterior Insect & Bird Wire Mesh Screens

Downloads

Documents and Procurement Files

Authorized product catalogs, dimensional drawings, performance curves, and Saudi commercial compliance documentation.

TAT LDSF Product CatalogDownload PDF
TAT LDSF Technical SubmittalRequest Submittal
Cloud Electricals Company ProfileRequest Profile
Saudi Commercial Compliance (CR/VAT/COC)Request Compliance Docs
Engineering Selection & Schedule SheetRequest Selection Sheet
