What is the difference between OV, OVK, and VKF fans?

All three share the same aerodynamic motor and impeller platform from VENTS: OV features a square mounting plate for flat wall surface installation, OVK has a round mounting plate for circular wall openings, and VKF has dual round flanges for direct inline connection into circular ventilation ductwork.

Are 60Hz configurations available for Saudi Arabia projects?

Yes. Models from 200 mm to 630 mm have verified factory 60Hz ratings for standard Saudi Arabian 220–240V single-phase and 380–415V three-phase electrical supplies. Models 710 mm and 800 mm are listed in the manufacturer catalog at 50Hz.

What are the operating limits for low static pressure?

VENTS OV axial fans are designed for low-pressure systems (0 to 100 Pa). When discharging directly through an open wall or short wall sleeve with gravity shutters, airflow is maximized. Connecting OV fans to long, high-resistance duct runs will result in significant airflow reduction.

Can VENTS OV fans be used for smoke pressurisation?

The manufacturer catalog mentions OV/OVK fans for pressurisation in smoke ventilation systems. However, any life-safety use requires project-specific engineering review, design duty calculations, control and damper logic, power backup, and formal consultant and local civil defense approval. The standard catalogue continuous operating temperature (-30°C to +50°C at 60Hz) is for normal ventilation and does not constitute a high-temperature emergency fire rating.

Can the fan speed be controlled?

Yes. Single-phase models (OV 2E / 4E / 6E) can be controlled smoothly using thyristor electronic speed controllers (e.g. RS-1-400) or stepped using autotransformer controllers. Three-phase models (OV 4D / 6D) are controlled via multi-step autotransformers.

Is the OV series suitable for outdoor wall mounting?

Yes. The steel casing and impeller have a protective polymeric powder coating, and the motor is rated IP44. For exposed exterior facades, coordinating an external weather hood, rain cowl, or gravity backdraft shutter is recommended to prevent water and sand ingress.

Can OV fans be used for commercial kitchen grease exhaust?

No. Standard VENTS OV axial fans are strictly for clean or ambient non-hazardous air. Commercial kitchen cooking hoods require grease-rated, high-temperature centrifugal upblast roof fans or dedicated grease-rated centrifugal box inline fans compliant with NFPA 96.

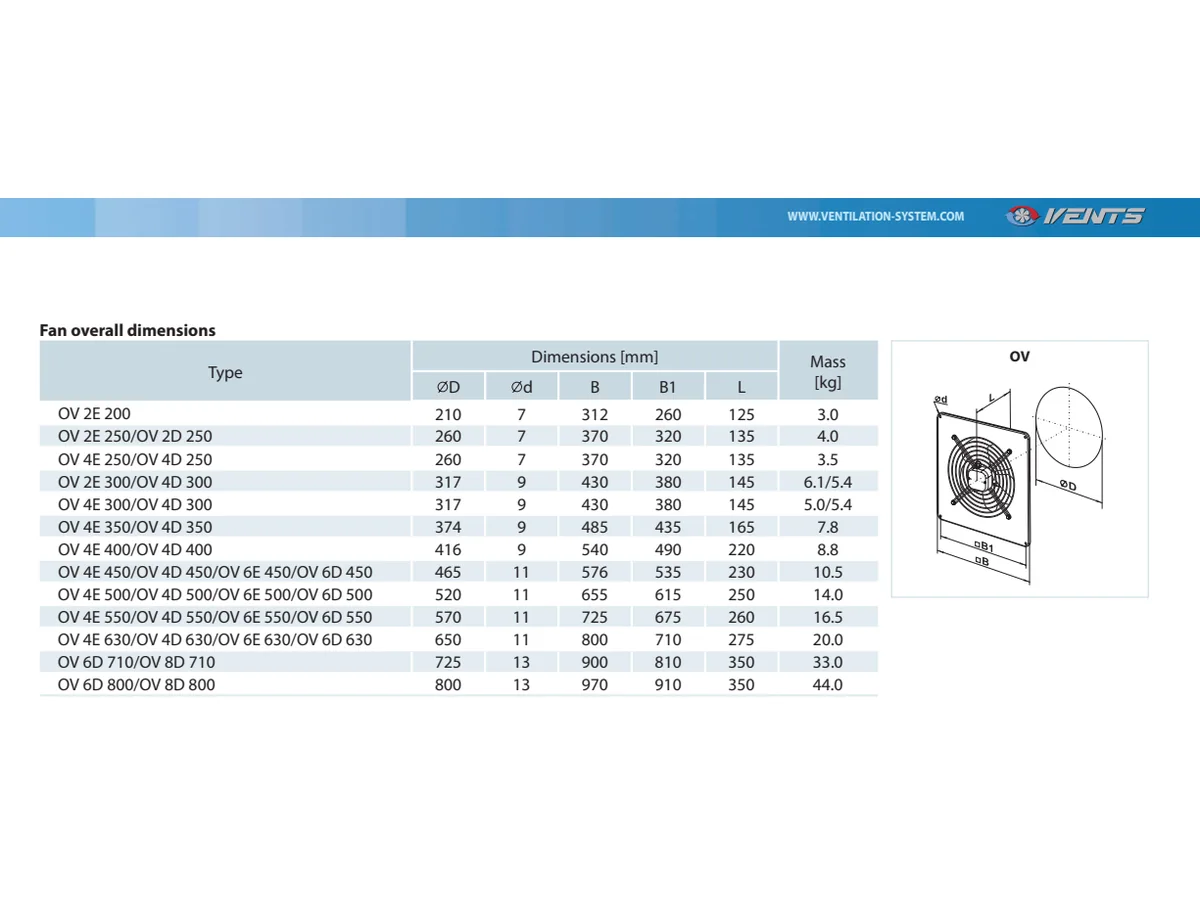

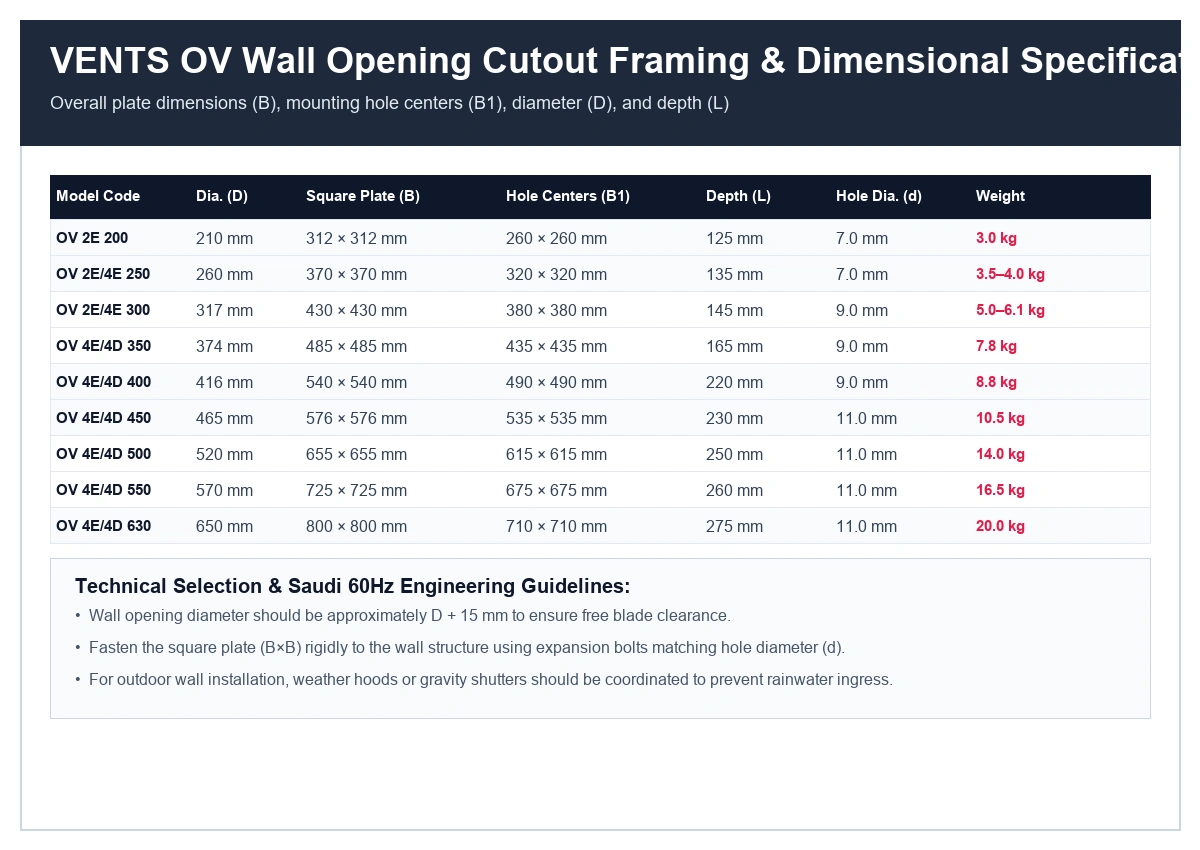

What wall opening size is required for installation?

The circular wall cutout diameter should be approximately the impeller diameter (D) + 15 mm. The square mounting plate outer dimensions (B) range from 312×312 mm for the 200 mm model up to 800×800 mm for the 630 mm model.

What documentation is available for engineering submittal?

Cloud Electricals provides the official VENTS OV / OVK / VKF technical catalog PDF, dimensional cut sheets, 60Hz performance curves, and Saudi commercial compliance documentation (CR, VAT, ISO, COC) for contractor and consultant review.

VENTS OV Series • Square Plate

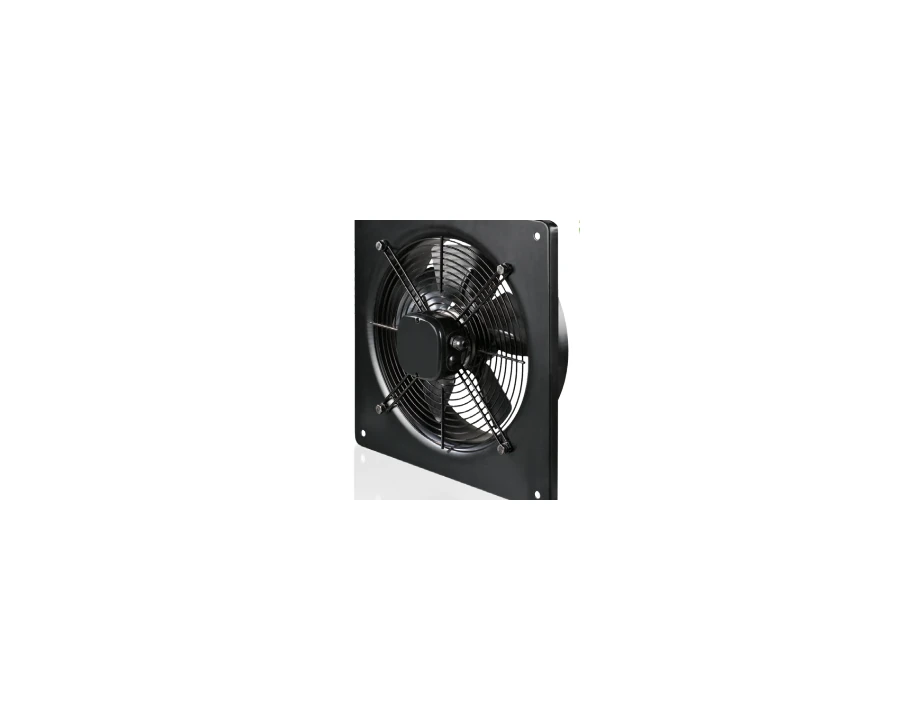

VENTS OV Wall Mounted Axial Fan

Q: What is the VENTS OV wall mounted axial fan?

The VENTS OV series is a commercial and industrial square-plate wall mounted axial fan engineered for direct wall supply and exhaust ventilation. Built with a heavy-gauge steel square plate, polymeric anti-corrosion coating, and an IP44 external rotor motor, it delivers high airflow (510 to 7,120 CFM across 200–630 mm models at 60Hz) in low-resistance systems.

Low-pressure square-plate wall mounted axial fans for direct air supply and exhaust in industrial factories, warehouses, commercial service rooms, and perimeter building walls across Saudi Arabia.

Request Quote on WhatsApp Call Technical Sales Download VENTS OV Catalog

In brief

What is the VENTS OV wall mounted axial fan?

The VENTS OV series is a European-engineered low-pressure square-plate wall axial fan designed for high air displacement (510 to 7,120 CFM across 200–630 mm models at 60Hz). It features a polymer-coated steel plate, IP44 external rotor motor, and continuous operating envelope (-30°C to +50°C at 60Hz) for direct wall supply or exhaust.

VENTS OV low pressure square-plate wall mounted axial fan for direct supply and exhaust

VENTS OV Wall Mounted Axial Fan

230V / 400V 60Hz verified ratings

Direct low-pressure wall mounting

Saudi Arabia commercial delivery

VENTS OV Wall Mounted Axial Fan

Fan Category

Wall Mounted Axial Fan (Square Plate)

Product Series

VENTS OV Series (Low Pressure)

Airflow Range (60Hz)

510 to 7,120 CFM (865 to 12,100 m³/h)

Impeller Diameters

200 mm to 630 mm (8" to 25")

Motor Electrical Supply

1~230V & 3~400V / 60Hz (IP44 Motor)

Transported Air Temp

-30°C to +50°C (60Hz continuous)

Application Check

Is the VENTS OV wall axial fan suitable for your facility?

Evaluate required airflow, operating static pressure, electrical supply, and airstream characteristics before selection.

Good fit

Industrial factories, manufacturing halls, and large production workshops
Commercial warehouses requiring direct wall air supply or stale heat extraction
Electrical transformer rooms, switchgear bays, and elevator equipment rooms
General service corridors, utility areas, and commercial storage facilities

Confirm first

Operating static pressure must remain low (< 50–120 Pa) to prevent airflow collapse
Wall opening cutout diameter (D + 15 mm) and square plate outer size (B × B mm)
Site electrical supply (1-Phase 230V 60Hz or 3-Phase 400V 60Hz)
External speed controller matching (thyristor for 1-phase / autotransformer for 3-phase)
Transported air operating temperature within continuous bounds (-30°C to +50°C at 60Hz)

Use another documented fan

Commercial kitchen grease exhaust hoods (select Upblast Roof Fan or Centrifugal Box Fan)
High-temperature emergency smoke extract (select certified VDO Smoke Extraction Fan)
High-resistance duct systems with multi-branch grilles (select Inline Duct Fan)
Explosion-proof or ATEX-classified flammable solvent or spray painting booths

Smoke pressurisation & life-safety engineering boundary: The catalogue mentions OV/OVK for pressurisation in smoke ventilation systems; any life-safety use requires the exact model's approval, design duty, normal/emergency operating mode, controls, power, damper logic and consultant/authority acceptance. The catalogue's normal air-temperature limits (-30°C to +50°C at 60Hz) are not a fire-rating.

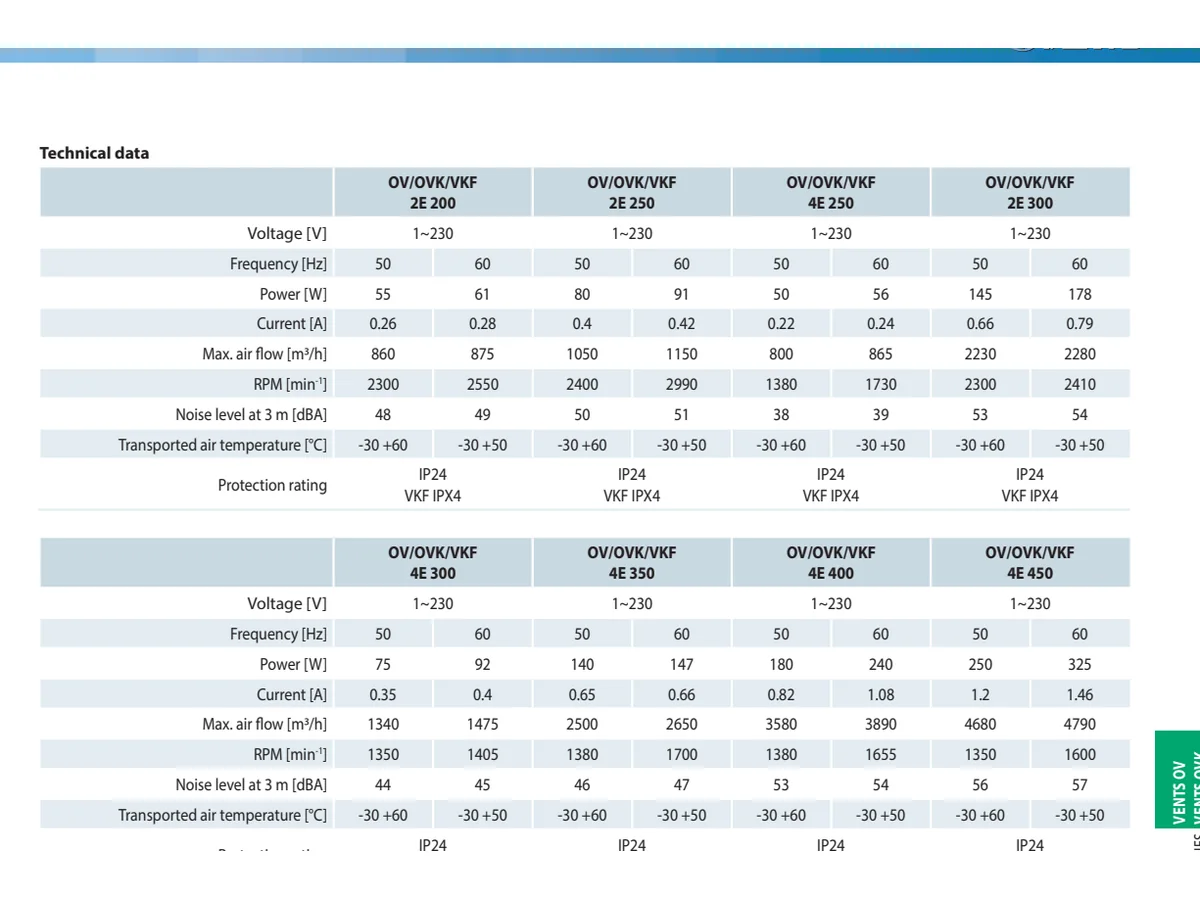

Model Performance Range

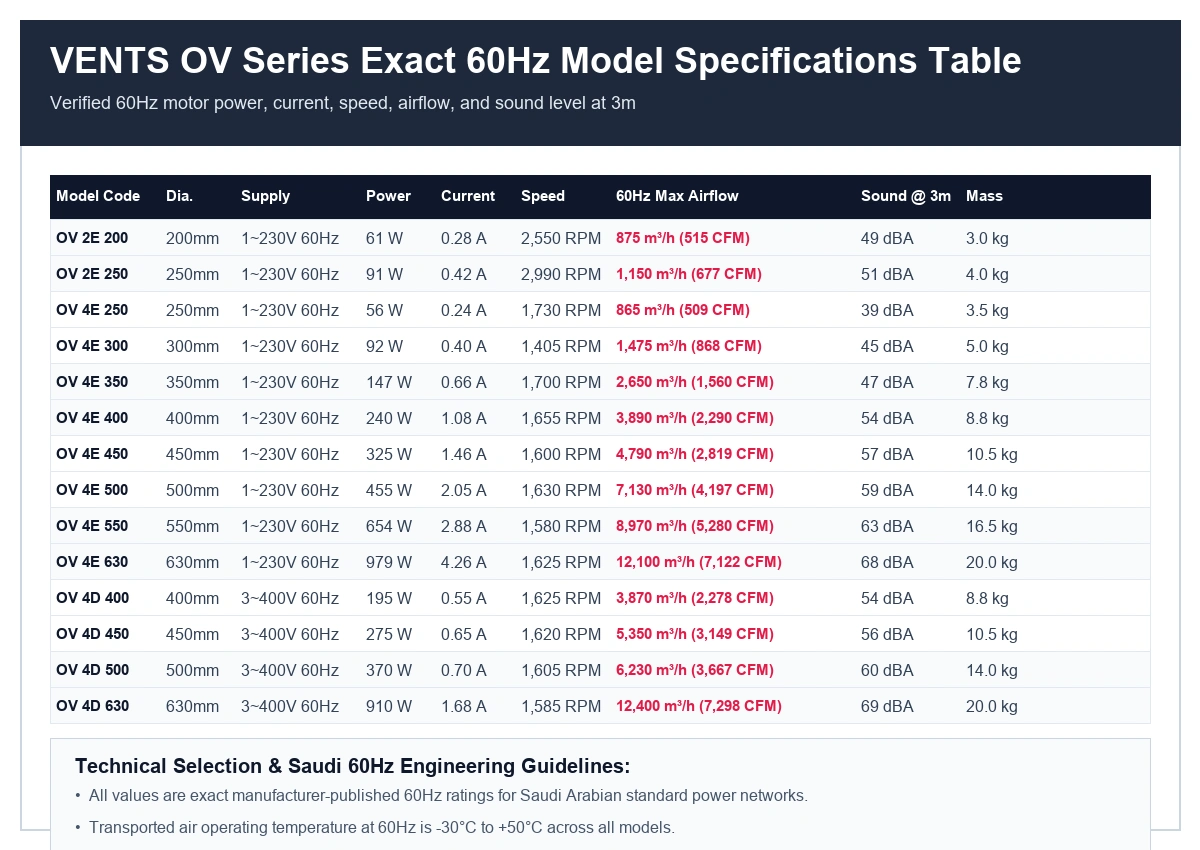

VENTS OV Exact 60Hz & 50Hz Model Specifications Table

Complete engineering specifications across single-phase (OV 2E/4E/6E) and three-phase (OV 4D/6D/8D) configurations.

Swipe horizontally to compare all columns.

Model Code	Impeller Dia.	Phase & Supply	Freq.	Input Power	Current	Motor Speed	Max Airflow (m³/h / CFM)	Noise @ 3m	Air Temp	Wall Plate (B×B)
OV 2E 200	200 mm	1~230V 1-Ph	60 Hz	61 W	0.28 A	2,550 RPM	875 m³/h (515 CFM)	49 dBA	-30..+50°C	312 × 312 mm
OV 2E 250	250 mm	1~230V 1-Ph	60 Hz	91 W	0.42 A	2,990 RPM	1,150 m³/h (677 CFM)	51 dBA	-30..+50°C	370 × 370 mm
OV 4E 250	250 mm	1~230V 1-Ph	60 Hz	56 W	0.24 A	1,730 RPM	865 m³/h (509 CFM)	39 dBA	-30..+50°C	370 × 370 mm
OV 2E 300	300 mm	1~230V 1-Ph	60 Hz	178 W	0.79 A	2,410 RPM	2,280 m³/h (1,342 CFM)	54 dBA	-30..+50°C	430 × 430 mm
OV 4E 300	300 mm	1~230V 1-Ph	60 Hz	92 W	0.40 A	1,405 RPM	1,475 m³/h (868 CFM)	45 dBA	-30..+50°C	430 × 430 mm
OV 4E 350	350 mm	1~230V 1-Ph	60 Hz	147 W	0.66 A	1,700 RPM	2,650 m³/h (1,560 CFM)	47 dBA	-30..+50°C	485 × 485 mm
OV 4E 400	400 mm	1~230V 1-Ph	60 Hz	240 W	1.08 A	1,655 RPM	3,890 m³/h (2,290 CFM)	54 dBA	-30..+50°C	540 × 540 mm
OV 4E 450	450 mm	1~230V 1-Ph	60 Hz	325 W	1.46 A	1,600 RPM	4,790 m³/h (2,819 CFM)	57 dBA	-30..+50°C	576 × 576 mm
OV 6E 450	450 mm	1~230V 1-Ph	60 Hz	161 W	0.80 A	1,115 RPM	3,250 m³/h (1,913 CFM)	52 dBA	-30..+50°C	576 × 576 mm
OV 4E 500	500 mm	1~230V 1-Ph	60 Hz	455 W	2.05 A	1,630 RPM	7,130 m³/h (4,197 CFM)	59 dBA	-30..+50°C	655 × 655 mm
OV 6E 500	500 mm	1~230V 1-Ph	60 Hz	268 W	1.22 A	1,105 RPM	5,380 m³/h (3,167 CFM)	56 dBA	-30..+50°C	655 × 655 mm
OV 4E 550	550 mm	1~230V 1-Ph	60 Hz	654 W	2.88 A	1,580 RPM	8,970 m³/h (5,280 CFM)	63 dBA	-30..+50°C	725 × 725 mm
OV 6E 550	550 mm	1~230V 1-Ph	60 Hz	375 W	1.63 A	1,060 RPM	6,520 m³/h (3,838 CFM)	58 dBA	-30..+50°C	725 × 725 mm
OV 4E 630	630 mm	1~230V 1-Ph	60 Hz	979 W	4.26 A	1,625 RPM	12,100 m³/h (7,122 CFM)	68 dBA	-30..+50°C	800 × 800 mm
OV 6E 630	630 mm	1~230V 1-Ph	60 Hz	610 W	2.74 A	1,075 RPM	10,990 m³/h (6,469 CFM)	59 dBA	-30..+50°C	800 × 800 mm
OV 4D 350	350 mm	3~400V 3-Ph	60 Hz	150 W	0.41 A	1,640 RPM	2,590 m³/h (1,524 CFM)	46 dBA	-30..+50°C	485 × 485 mm
OV 4D 400	400 mm	3~400V 3-Ph	60 Hz	195 W	0.55 A	1,625 RPM	3,870 m³/h (2,278 CFM)	54 dBA	-30..+50°C	540 × 540 mm
OV 4D 450	450 mm	3~400V 3-Ph	60 Hz	275 W	0.65 A	1,620 RPM	5,350 m³/h (3,149 CFM)	56 dBA	-30..+50°C	576 × 576 mm
OV 4D 500	500 mm	3~400V 3-Ph	60 Hz	370 W	0.70 A	1,605 RPM	6,230 m³/h (3,667 CFM)	60 dBA	-30..+50°C	655 × 655 mm
OV 4D 630	630 mm	3~400V 3-Ph	60 Hz	910 W	1.68 A	1,585 RPM	12,400 m³/h (7,298 CFM)	69 dBA	-30..+50°C	800 × 800 mm
OV 6D 710	710 mm	3~400V 3-Ph	50 Hz*	1,150 W	2.00 A	830 RPM	15,440 m³/h (9,088 CFM)	63 dBA	-30..+60°C	900 × 900 mm
OV 6D 800	800 mm	3~400V 3-Ph	50 Hz*	1,850 W	3.70 A	915 RPM	25,000 m³/h (14,714 CFM)	67 dBA	-30..+60°C	970 × 970 mm

Catalog & Saudi 60Hz Note: Performance values reflect authentic VENTS manufacturer catalog ratings. 60Hz configurations are verified across models 200mm to 630mm for standard Saudi Arabian 220–240V 1-phase and 380–415V 3-phase networks. Models OV 6D 710 and OV 6D 800 are listed by the manufacturer at 50Hz (*50Hz-listed configuration). Maximum series airflow of 25,000 m³/h applies strictly to the 800mm model under free-air conditions. Transported air temperature: -30°C to +50°C at 60Hz.

Engineering Architecture

Square-Plate Wall Mounting & External Rotor Motor

Rigid polymer-coated steel casing, compact axial motor depth, and versatile electronic speed regulation.

Square-Plate Wall Mounting

Rigid steel square casing with corrosion-resistant polymeric coating allows direct surface fastening over circular wall cutouts without complex sheet metal framing.

External Rotor Motor & IP44

Compact asynchronous motor with external rotor design provides high aerodynamic efficiency, IP44 dust/water protection, and ball bearings rated for ≥ 40,000 continuous hours.

Low-Pressure Aerodynamic Duty

Engineered for maximum air displacement in low-resistance applications (0 to 100 Pa). Ideal for direct wall discharge or through short wall spigots with gravity shutters.

Speed Control Compatibility

Compatible with smooth thyristor electronic controllers (single-phase) or step autotransformer controllers (single and three-phase) for variable airflow modulation.

Key Features

Engineered Features for Low-Pressure Wall Ventilation

Built for high-volume air supply and exhaust with European motor reliability and heavy-duty steel construction.

Low-pressure square-plate wall mounted axial fan engineered for high-volume air supply and exhaust

Heavy-gauge steel casing and formed impeller blades finished with durable polymeric anti-corrosion coating

High-efficiency asynchronous external rotor motor with integrated thermal overheating protection

Ball bearing motor construction designed for continuous industrial duty exceeding 40,000 operating hours

Verified 60Hz performance ratings across single-phase 230V and three-phase 400V Saudi electrical supplies

Wide continuous operating air temperature envelope from -30°C to +50°C at 60Hz (-30°C to +60°C at 50Hz)

Equipped with concentric steel wire safety guard on the motor/inlet side for personal protection

Available with matched thyristor or autotransformer speed controllers for smooth or multi-step modulation

Specifications

Category Technical Specifications

Complete engineering specifications for VENTS OV square-plate wall mounted axial fans.

Swipe horizontally to compare all columns.

Specification	Engineering Details
Product Category	Wall Mounted Fan
Product Type	Square-Plate Low Pressure Wall Axial Fan
Model Series	VENTS OV Series
Installation	Wall surface mounting with square plate over circular opening
Impeller Diameters	200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 630 mm (710/800 mm 50Hz)
Airflow Range (60Hz)	510 to 7,120 CFM (865 to 12,100 m³/h) across 200–630 mm models
Electrical Supply	1~230V / 60Hz (Single-Phase) & 3~400V / 60Hz (Three-Phase)
Motor Construction	External rotor asynchronous motor with ball bearings (≥ 40,000 hrs)
Motor Protection	IP44 motor protection rating; IP24 terminal box enclosure
Operating Air Temp	-30°C to +50°C (60Hz continuous) / -30°C to +60°C (50Hz)
Casing & Blade Material	High-grade rolled steel with protective polymer powder coat
Speed Control	Thyristor controller (smooth) or autotransformer (step)
Safety Ingress Guard	Concentric steel wire protective grille on inlet/motor side
Applications	Factories, warehouses, workshops, electrical plant rooms, service corridors, wall supply/exhaust
Documentation	VENTS OV / OVK / VKF catalog PDF, technical submittal datasheets, compliance certificates

Applications

VENTS OV Wall Mounted Axial Fan Applications

High-airflow direct wall air exchange across industrial factories, warehouses, service rooms, and commercial premises.

Industrial factories & plants

Removes: Process heat, stale air, and ambient vapors in manufacturing halls

Commercial warehouses

Removes: Trapped thermal layers across high-bay storage areas through wall openings

Commercial workshops

Removes: Non-hazardous assembly fumes, grinding dust, and equipment heat buildup

Electrical & plant rooms

Removes: Heat dissipated by transformers, switchgear boards, and pump controllers

Direct wall air supply

Removes: Delivers large volumes of fresh outdoor make-up air at low static resistance

Direct wall exhaust

Removes: Extracts warm stagnant room air directly through perimeter building facades

Service & utility corridors

Removes: Moisture, dampness, and stagnant air in back-of-house commercial areas

MEP project procurement

Removes: Sized by exact model code, airflow at low pressure, voltage/phase, and 60Hz supply

Application boundary: VENTS OV fans are low-pressure wall units designed for clean/ambient non-hazardous air. For commercial kitchen grease hoods, select a certified Upblast Roof Fan or Centrifugal Box Inline Fan. For emergency fire smoke extract, select a certified VDO Axial Smoke Extraction Fan.

Selection support

What to Send for Correct Selection

Send the exact OV model designation, required airflow, wall cutout dimensions, voltage/phase, and project city in Saudi Arabia for technical review and quotation.

Exact OV model designation (e.g. OV 4E 400, OV 4E 450, OV 4D 500, OV 4D 630)

Required airflow (m³/h or CFM) at estimated system static pressure (< 50–120 Pa)

Ventilation direction: direct air exhaust or direct air supply

Wall cutout opening diameter (D + 15 mm) and available square plate space (B × B mm)

Electrical power supply: 1-Phase 230V 60Hz or 3-Phase 400V 60Hz

Airstream condition: clean/ambient non-hazardous air (-30°C to +50°C at 60Hz)

Speed controller requirement (thyristor smooth controller or multi-step autotransformer)

Mounting environment: interior wall surface or exterior wall with weather cowl / shutter

Quantity required and delivery project city in Saudi Arabia

Technical submittal and compliance documentation requirement (CR, VAT, ISO, COC)

For smoke pressurisation inquiries: engineered design duty, damper logic, and consultant approval details

Accessories

OV Wall Mounted Fan Accessory Options

Coordinate VENTS thyristor or autotransformer speed controllers, external weather cowls, and gravity shutters.

VENTS Thyristor Smooth Speed Controllers (1-Phase)

VENTS Autotransformer Multi-Step Speed Controllers (1-Ph & 3-Ph)

External Sheet Metal Weather Cowls & Rain Hoods

Automatic Gravity Shutter Louver Assemblies

Flexible Duct Connectors & Mounting Flanges

Exterior Insect & Bird Wire Mesh Screens

Downloads

Documents and Procurement Files

Authorized product catalogs, dimensional drawings, performance curves, and Saudi commercial compliance documentation.

VENTS OV / OVK / VKF Product CatalogDownload PDF

VENTS OV Technical SubmittalRequest Submittal

Cloud Electricals Company ProfileRequest Profile

Saudi Commercial Compliance (CR/VAT/COC)Request Compliance Docs

Engineering Selection & Schedule SheetRequest Selection Sheet
