Saudi Fan AND Inline Axial Fan
Saudi Fan AND inline axial fans are adjustable pitch axial exhaust or supply fans for duct connection, available in short, long, and service-access casing options.
Saudi Fan AND performance curve models
Performance rows summarize the catalog curves shown for selected AND models. Blade pitch is adjustable from 10 to 40 degrees in the listed curves; final selection should be confirmed by duty point.
| Model | Diameter | Blade Count | Frequency / Speed | Blade Angle | Max Power Range | Sound Power | Catalog Note |
|---|---|---|---|---|---|---|---|

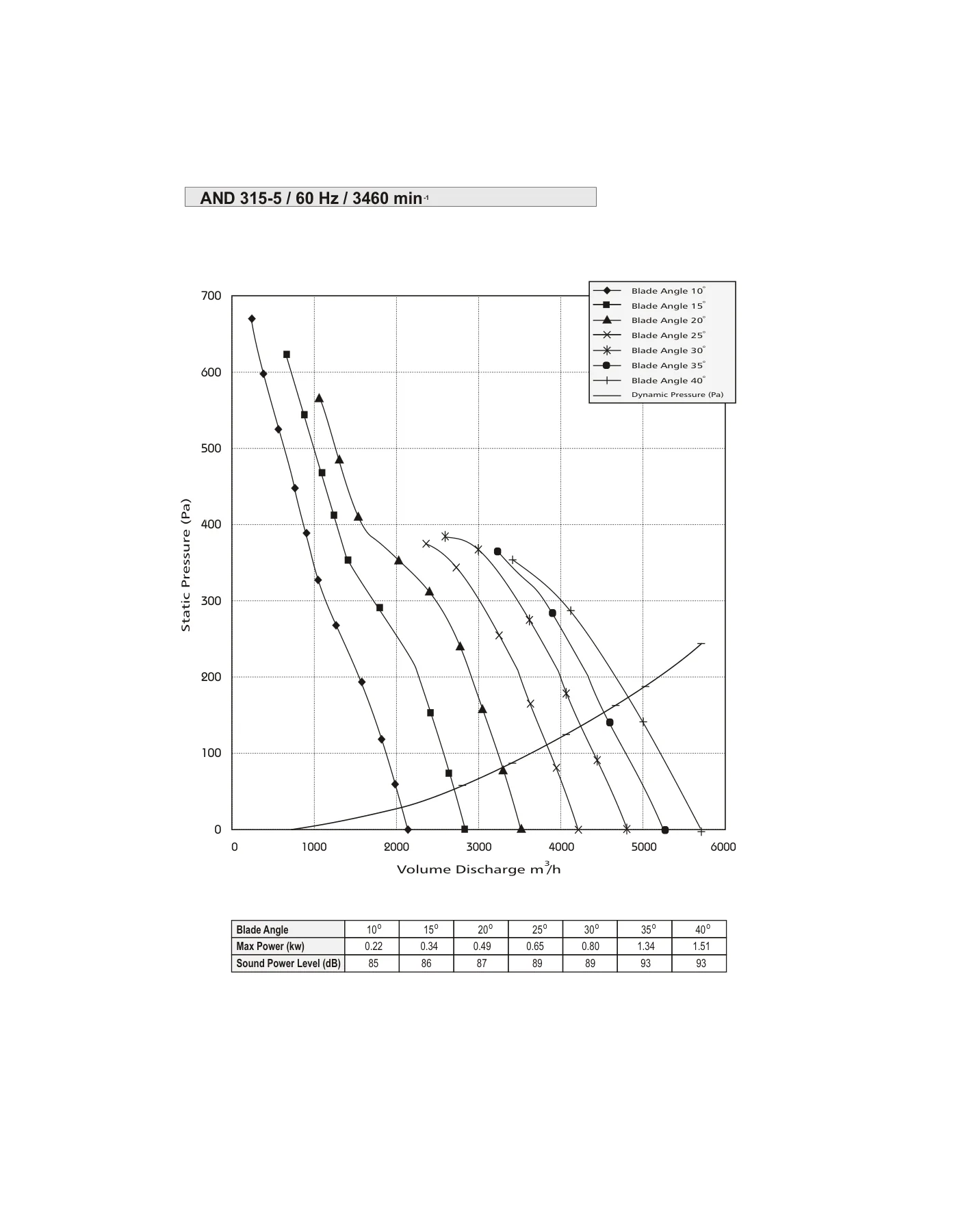

| AND 315-5 | 315 mm | 5 blades | 60Hz / 3460 min-1 | 10-40 degrees | 0.22-1.51 kW | 85-93 dB | Performance curve |
| AND 500-5 | 500 mm | 5 blades | 60Hz / 1730 min-1 | 10-40 degrees | 0.26-1.31 kW | 81-87 dB | Performance curve |
| AND 630-5 | 630 mm | 5 blades | 60Hz / 1150 min-1 | 10-40 degrees | 0.17-0.87 kW | 77-83 dB | Low-speed curve |
| AND 630-5 | 630 mm | 5 blades | 60Hz / 1730 min-1 | 10-40 degrees | 0.57-2.98 kW | 87-93 dB | High-speed curve |
| AND 800-10 | 800 mm | 10 blades | 60Hz / 1150 min-1 | 10-40 degrees | 1.20-7.03 kW | 92-102 dB | High pressure curve |

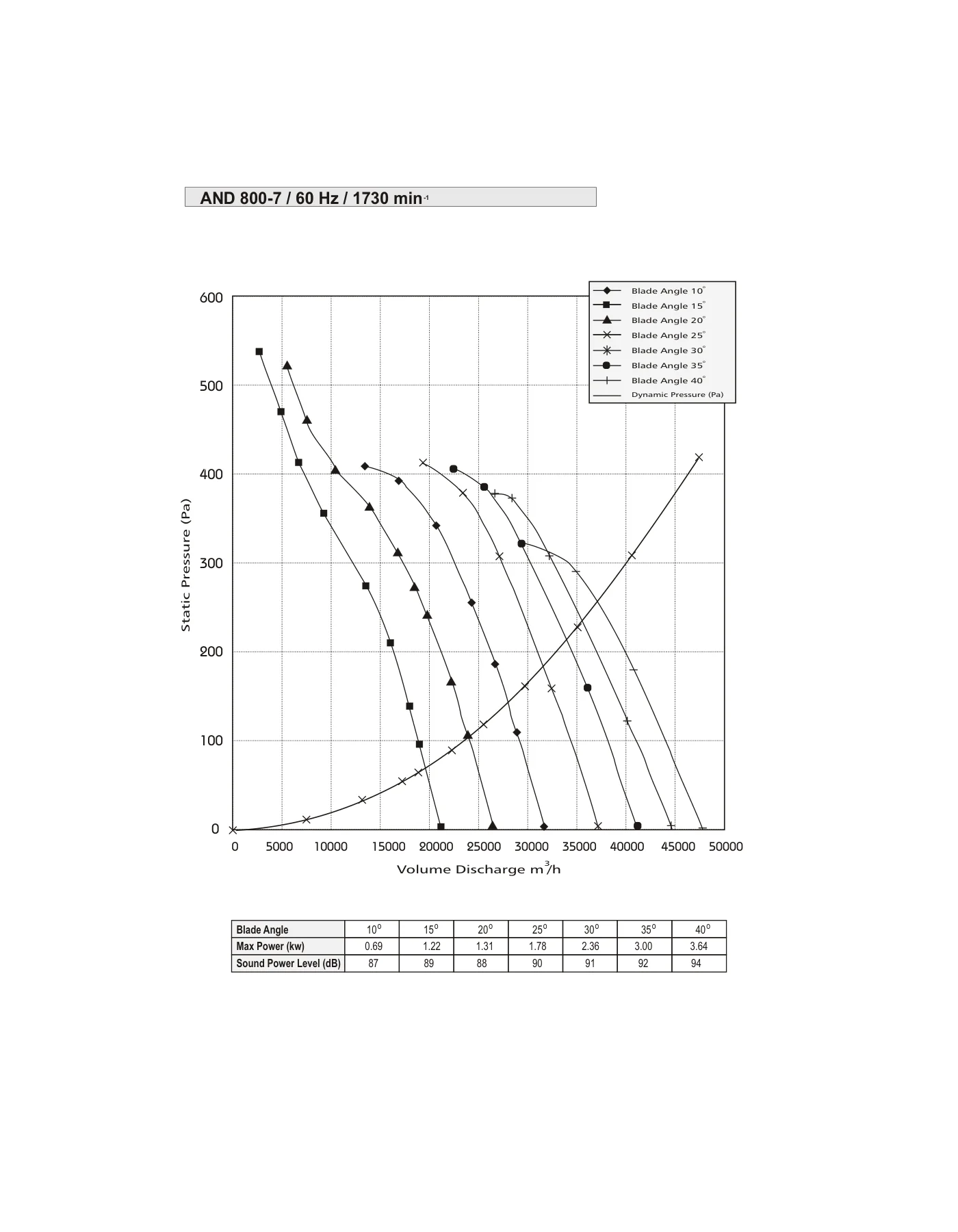

| AND 800-7 | 800 mm | 7 blades | 60Hz / 1730 min-1 | 10-40 degrees | 0.69-3.64 kW | 87-94 dB | High flow curve |
| AND 800-14 | 800 mm | 14 blades | 60Hz / 860 min-1 | 10-40 degrees | 0.40-1.98 kW | 81-87 dB | Low-speed curve |
Adjustable pitch inline axial fan for exhaust or supply air
Saudi Fan AND inline axial fans are designed for supply or exhaust air in duct systems. The series uses adjustable pitch axial blades, cylindrical casing, and flanged inlet/outlet connections for airtight ductwork connection.
The catalog lists duct connection sizes from 315 mm to 1000 mm, maximum flow rate up to 75,000 m3/h, and maximum static pressure up to 830 Pa. Applications include building ventilation, air conditioning support, combustion systems, electrical cooling, workshops, warehouses, and industrial duct systems.
For Saudi Arabia projects, the correct AND selection should be based on duct diameter, airflow, static pressure, blade angle, motor size, drive arrangement, casing length, accessories, and approval document needs.
Key features for Saudi Fan AND inline axial fans
The AND series is built for ducted axial ventilation where airflow, pressure, blade angle, casing length, and service access must be coordinated.
Technical specifications
Final fan selection should confirm airflow, pressure, voltage, installation, accessories, and project approval requirements.
| Specification | Available Options / Details |
|---|---|
| Product Category | Inline Fan |
| Product Type | Inline Adjustable Pitch Axial Fan |
| Brand / Series | Saudi Fan AND |
| Duct Connection Range | 315 mm to 1000 mm |
| Flow Rate | Up to 75,000 m3/h catalog reference |
| Static Pressure | Up to 830 Pa catalog reference |
| Blade Type | Adjustable pitch airfoil shaped aluminum blades |
| Casing | Welded galvanized sheet steel casing with inlet and outlet flanges |
| Casing Options | Short casing, long casing, long casing with service access |
| Motor | Standard motor B3 design; IP55 and Class F catalog reference |
| Electrical Connection | IP44 terminal box catalog reference |
| Temperature / Humidity | -30C to +60C; up to 95% humidity catalog reference |
| Applications | Supply air, exhaust air, combustion systems, electrical cooling, workshops, warehouses, ships, buildings |
| Documentation | Catalog PDF, performance curves, dimensions, quotation, submittal, and procurement documents on request |
Saudi Fan AND inline axial fan applications
The AND series is designed for inline axial supply or exhaust applications where large air volume and adjustable pitch selection are required.
What to Send for Correct Selection
Send these details so the AND fan can be selected by duty point, blade pitch, motor, and duct connection.

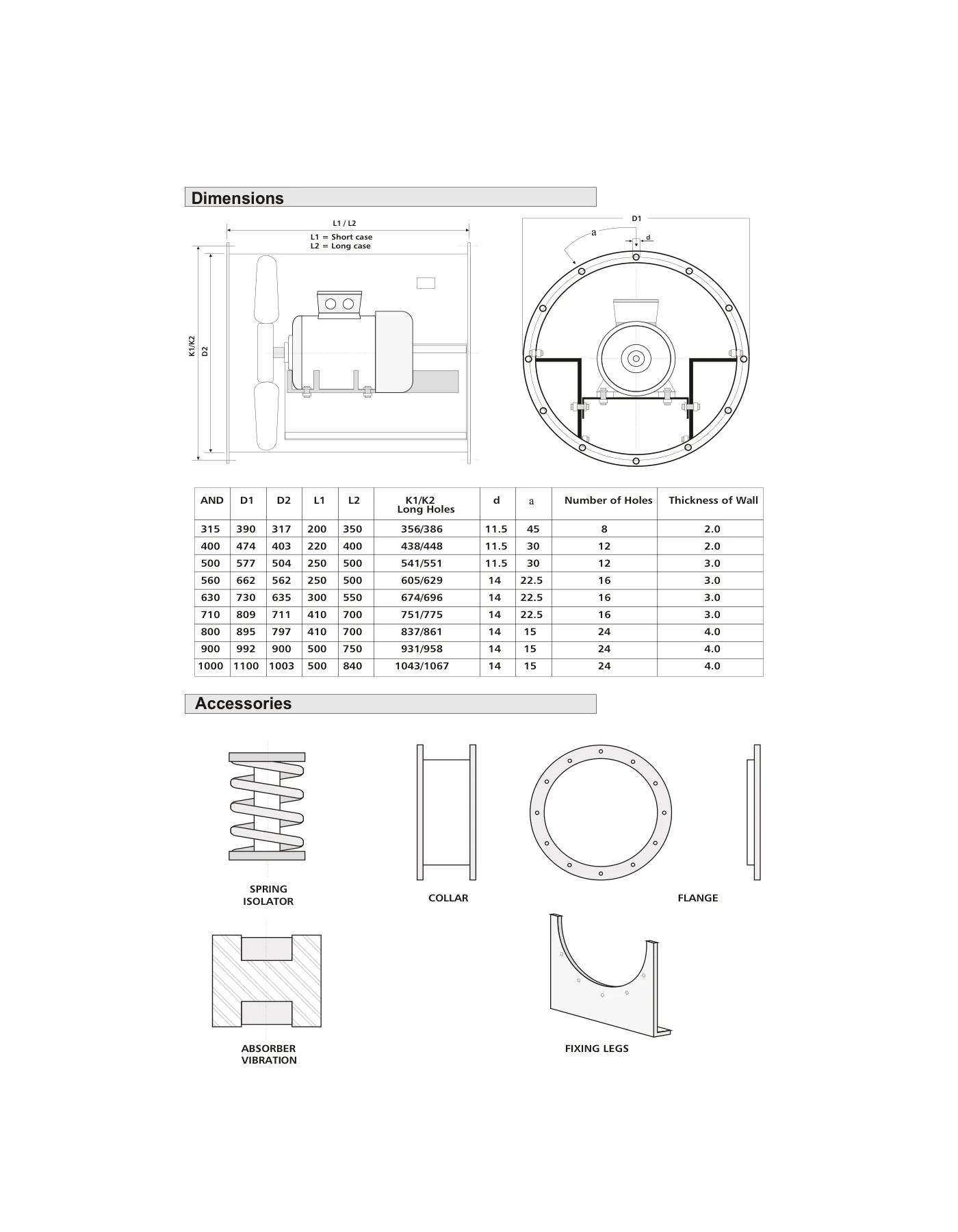

Saudi Fan AND inline axial fan accessories
AND accessories can be coordinated for duct connection, isolation, access, safety guarding, and electrical shutoff.
Documents and procurement files
Product and company documents can be shared for contractor, consultant, and procurement review.
Related ventilation products
Saudi Fan AND inline axial fan questions
Common questions for buyers reviewing Saudi Fan AND inline axial exhaust or supply fans.
