Saudi Fan RTC Roof Top Centrifugal Fan
Saudi Fan RTC roof top centrifugal fans provide reliable general clean air exhaust for commercial and industrial projects, with catalog performance pages for RTC 300 through RTC 1000.
Saudi Fan RTC model range
RTC model list based on the Saudi Fan RTC catalog. The catalog states a broad capacity range from 350 to 18,000 CFM; final selection should use the performance curves/pages for duty point confirmation.
| Model | Fan Type | Catalog Data | Capacity Note | Test Reference | Selection Note |
|---|---|---|---|---|---|
| RTC 300 | Roof Top Centrifugal Fan | Catalog performance page | Part of 350-18,000 CFM series range | AMCA 210 / 300 test reference | Select by duty point |
| RTC 425 | Roof Top Centrifugal Fan | Catalog performance page | Part of 350-18,000 CFM series range | AMCA 210 / 300 test reference | Select by duty point |
| RTC 500 | Roof Top Centrifugal Fan | Catalog performance page | Part of 350-18,000 CFM series range | AMCA 210 / 300 test reference | Select by duty point |
| RTC 575 | Roof Top Centrifugal Fan | Catalog performance page | Part of 350-18,000 CFM series range | AMCA 210 / 300 test reference | Select by duty point |
| RTC 675 | Roof Top Centrifugal Fan | Catalog performance page | Part of 350-18,000 CFM series range | AMCA 210 / 300 test reference | Select by duty point |
| RTC 750 | Roof Top Centrifugal Fan | Catalog performance page | Part of 350-18,000 CFM series range | AMCA 210 / 300 test reference | Select by duty point |
| RTC 900 | Roof Top Centrifugal Fan | Catalog performance page | Part of 350-18,000 CFM series range | AMCA 210 / 300 test reference | Select by duty point |
| RTC 1000 | Roof Top Centrifugal Fan | Catalog performance page | Part of 350-18,000 CFM series range | AMCA 210 / 300 test reference | Select by duty point |
Roof top centrifugal fan for clean air exhaust
Saudi Fan RTC roof top centrifugal fans are designed for general clean air roof exhaust applications. The series supports commercial and industrial buildings that need reliable roof-mounted exhaust with cataloged performance data.

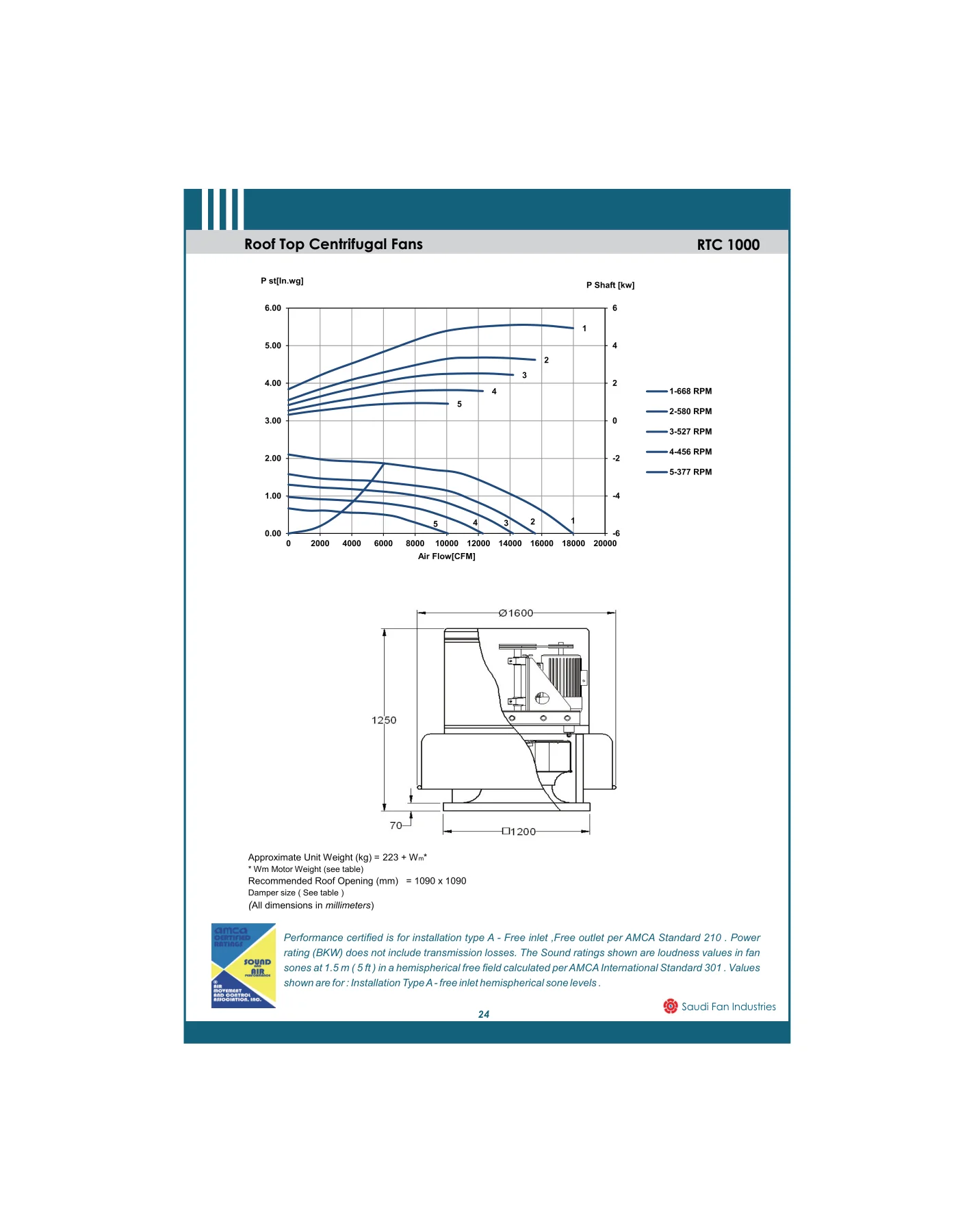

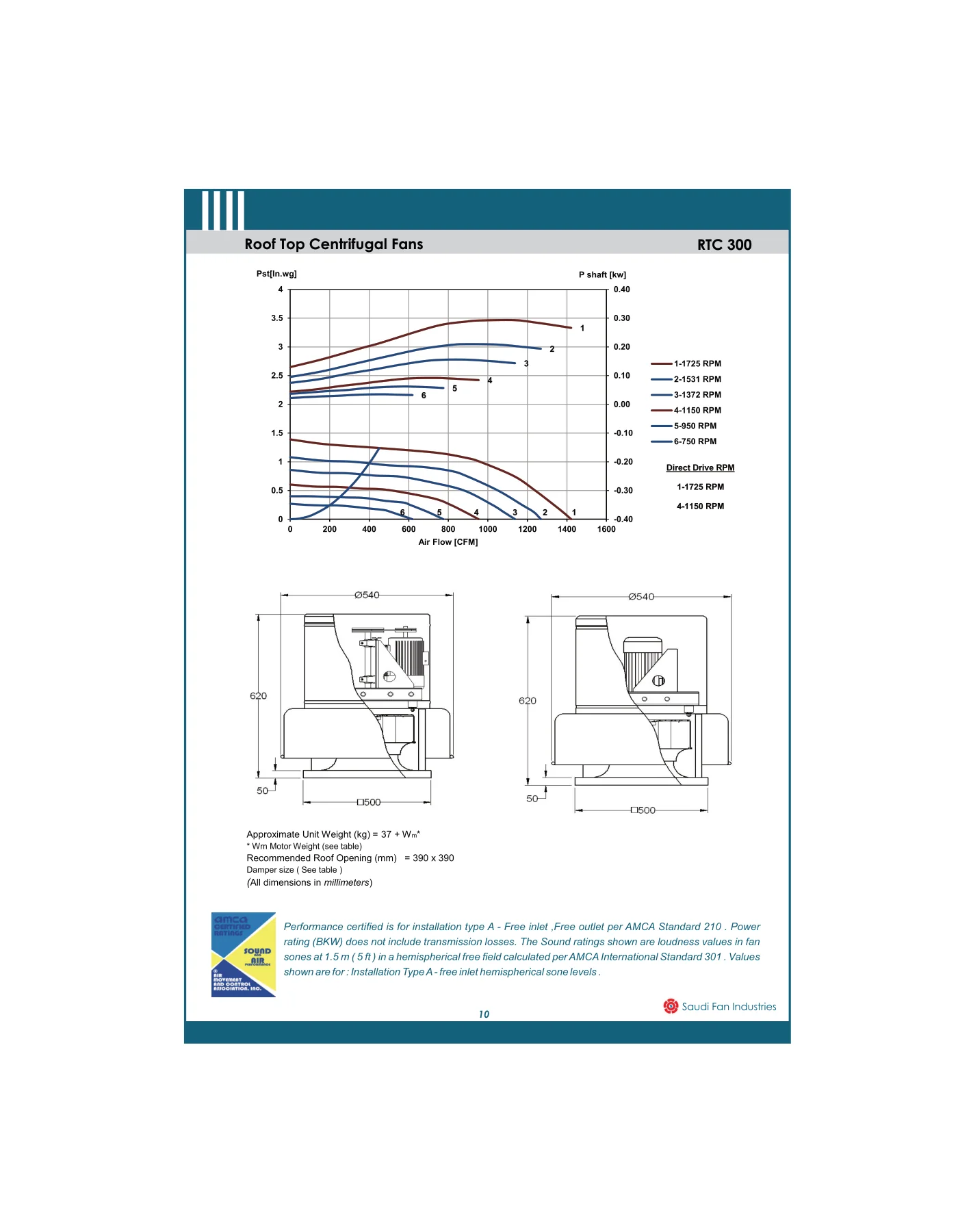

The RTC catalog states the series is available in 8 models, from RTC 300 through RTC 1000, with performance capabilities from 350 to 18,000 CFM. Performance pages are included in the catalog for project selection.
For Saudi Arabia projects, model selection should be based on required airflow, static pressure, motor requirement, power supply, roof curb, accessories, and approval document needs.
Key features for Saudi Fan RTC roof top centrifugal fans
The RTC series is designed for reliable roof top clean air exhaust where documented performance and project accessories matter.
Technical specifications
Final fan selection should confirm airflow, pressure, voltage, installation, accessories, and project approval requirements.
| Specification | Available Options / Details |
|---|---|
| Product Category | Roof Fan |
| Product Type | Roof Top Centrifugal Fan |
| Brand / Series | Saudi Fan RTC |
| Models | RTC 300, RTC 425, RTC 500, RTC 575, RTC 675, RTC 750, RTC 900, RTC 1000 |
| Capacity Range | 350 to 18,000 CFM catalog statement |
| Application | General clean air roof exhaust |
| Performance Reference | AMCA 210 and AMCA 300 references in catalog introduction |
| Motor Protection | Built-in motor protection through thermal overload as standard |
| Accessories | VFD, motor starter, isolator switch, roof curb, damper, service access options |
| Selection Basis | Airflow, static pressure, power supply, motor, roof curb, and accessories |
| Documentation | Catalog PDF, performance pages, quotation, submittal, and procurement documents on request |
Saudi Fan RTC roof top centrifugal fan applications
RTC roof top centrifugal fans are used for general clean air roof exhaust in commercial and industrial buildings.
What to Send for Correct Selection
Send these details so the RTC fan can be selected against airflow, pressure, motor, and accessories.
Saudi Fan RTC roof fan accessories
RTC accessories can be coordinated for motor control, electrical isolation, roof mounting, backdraft control, and service access.
Documents and procurement files
Product and company documents can be shared for contractor, consultant, and procurement review.
Related ventilation products
Saudi Fan RTC roof fan questions
Common questions for buyers reviewing Saudi Fan RTC roof top centrifugal fans.
