ICF-E Commercial Series2.5 m – 4.2 m Diameters (8' – 14')PMSM Whisper-Quiet (<38 dB)

Commercial HVLS Ceiling Fan (ICF Series)

Architectural large-diameter HVLS ceiling circulation fans engineered with whisper-quiet permanent magnet direct-drive motors (PMSM) and aerodynamic airfoil blades delivering up to 238,235 CFM for gyms, supermarkets, retail stores, and restaurant dining across Saudi Arabia.

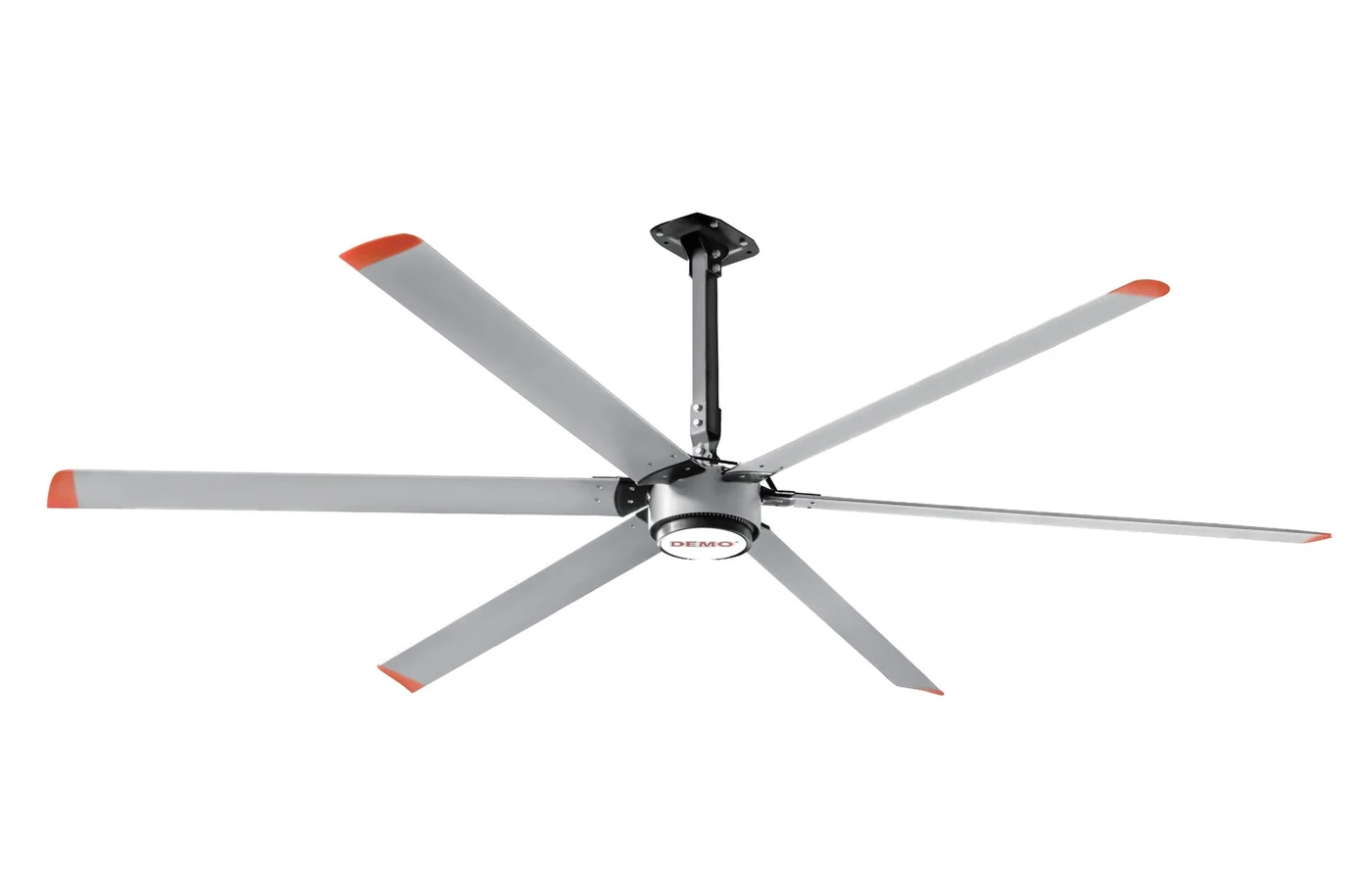

ICF commercial HVLS ceiling fan with permanent magnet direct-drive motor and architectural airfoil blades
ICF Commercial HVLS Ceiling Fan
Request Commercial QuotationCall Technical SalesDownload Technical Catalogue (1.8 MB)
4 commercial ICF-E models (2.5 m to 4.2 m)
Whisper-quiet PMSM motor (< 38 dB(A)) with 10-year warranty
Ultra-lightweight hub (31.5–41.0 kg) with IP65 rating
Max Airflow (4.2m)238,235 CFM
Sound Level< 38 dB(A) Silent
Power Consumption150 W – 340 W
RESTAURANT & COMMERCIAL BOUNDARY: Commercial HVLS fans circulate and destratify air across dining rooms, customer seating, cafes, and open retail halls. They DO NOT replace commercial kitchen grease exhaust or fresh-air makeup systems. Commercial cooking hoods require dedicated fire-rated grease ductwork and certified external kitchen exhaust fans (such as our certified Upblast Roof Fan series). In dining areas, fan speed should be tuned to provide comfort without blowing paper napkins or cooling hot food excessively. For kitchen cooking grease exhaust, refer to our certified Upblast Roof Fan series.
ARCHITECTURAL FIT-OUT & CLEARANCE COORDINATION: Maintain minimum 2.7 m (recommended ≥3.2 m) blade elevation above finished floor level in public zones. Coordinate placement with ceiling lighting to prevent rotating blades passing beneath light fixtures (which creates an annoying strobe flicker effect). Maintain at least 1.5 m horizontal separation from HVAC supply diffusers to avoid disrupting air throw, and coordinate with NFPA 13 fire sprinkler deflectors and fire alarm panel shutdown relays.
AIR VOLUME & COVERAGE CONDITION: Air volume figures (127,058 to 238,235 CFM) and coverage areas (225 to 465 m²) represent published manufacturer catalogue reference values. Actual floor-level air speed (≥1 m/s comfort zone) and perceived cooling effect (convective 3°C to 5°C breeze sensation) depend on ceiling height, architectural enclosure, seating layouts, and ambient conditions. HVLS fans do not replace air conditioning or lower dry-bulb thermometer temperature.

Engineering & Application Overview: Commercial HVLS Ceiling Fans

A commercial HVLS (High-Volume, Low-Speed) ceiling fan is an architectural large-diameter circulation fan (ranging from 2.5 to 4.2 metres) designed specifically for occupied public environments such as gyms, fitness studios, supermarkets, car showrooms (4S), hotel atriums, passenger terminals, and restaurant dining spaces. Utilizing an ultra-efficient permanent magnet synchronous motor (PMSM), it moves massive air volumes (from 127,058 to 238,235 CFM) at low rotational speeds (70 to 120 RPM) while operating whisper-quietly below 38 dB(A) without mechanical gear hum. The gentle downward airflow creates a wide horizontal floor breeze that enhances natural convective sweat evaporation, making occupants feel 3°C to 5°C cooler and destratifying warm ceiling air in winter. Because it recirculates air within the room rather than exhausting it outdoors, commercial facilities with kitchen grease, cooking odors, or stale air must pair HVLS circulation fans with dedicated mechanical exhaust and makeup air systems.

Fan CategoryHVLS Commercial Ceiling Fan
Model SeriesICF Commercial Series (ICF-E)
Drive MechanismGearless Direct-Drive Permanent Magnet Motor (PMSM)
Diameter Range2.5 m to 4.2 m (8.2 ft to 13.8 ft)
Airflow Volume127,058 to 238,235 CFM (catalogue reference)
Electrical Supply220V Single-Phase & 380V 3-Phase 60Hz Options
Verified Performance Schedule

ICF commercial HVLS model range (4 documented models)

Extracted directly from the manufacturer technical brochure (Deton ICF Series). Performance metrics represent calibrated catalogue reference values. Sizing must be coordinated with space architecture, clear height, and lighting plans.

ModelBlade DiameterNominal SpeedAir Volume (CFM / m³/min)Motor PowerGross Air CoveringOptimum Area (≥1 m/s)Main Fan Weight
ICF-42E4.2 m (13.8 ft)70 RPM238,235 CFM (6,750 m³/min)340 W465 m²185 m²41.0 kg
ICF-36E3.6 m (11.8 ft)85 RPM206,470 CFM (5,850 m³/min)325 W425 m²165 m²37.0 kg
ICF-30E3.0 m (9.8 ft)110 RPM185,294 CFM (5,250 m³/min)260 W330 m²115 m²34.0 kg
ICF-25E2.5 m (8.2 ft)120 RPM127,058 CFM (3,600 m³/min)150 W225 m²56 m²31.5 kg
Catalogue Reference & Coverage Footnote:

Air volume (CFM) and coverage area (m²) figures represent published manufacturer catalogue reference values. The optimum use area represents floor space where delivered air velocity is ≥ 1.0 m/s. HVLS fans produce a convective cooling effect (perceived 3°C to 5°C temperature reduction) but do not alter actual dry-bulb thermometer temperature.

Space Geometry & Sizing Matrix

Clear height, elevation & commercial application guidelines

Select commercial HVLS diameter based on room architectural height, occupancy density, lighting layout, and aesthetic proportion rather than square meters alone.

ModelDiameterMin. Ceiling HeightOptimum ElevationCommercial Space TypeTypical Spacing
ICF-25E2.5 m (8.2 ft)3.8 – 4.5 m2.8 – 3.4 mCafes, boutique gyms, meeting halls, restaurant dining10 – 14 m center-to-center
ICF-30E3.0 m (9.8 ft)4.2 – 5.2 m3.0 – 3.8 mFitness studios, retail shops, hotel atriums, bank lobbies12 – 16 m center-to-center
ICF-36E3.6 m (11.8 ft)4.8 – 6.0 m3.2 – 4.2 mSupermarkets, car showrooms (4S), food courts, commercial halls14 – 18 m center-to-center
ICF-42E4.2 m (13.8 ft)5.5 – 7.5 m3.5 – 4.8 mAirport terminals, sports recreation centers, exhibition pavilions16 – 22 m center-to-center
Engineering & Fit-Out Guide

Commercial HVLS clearance, lighting & NFPA 13 coordination

Visualizing the 4 architectural clearance rules for gyms, retail showrooms, atriums, and restaurant ceiling fan installations.

ICF commercial HVLS ceiling fan clearance, lighting strobe prevention, and ceiling height sizing guide

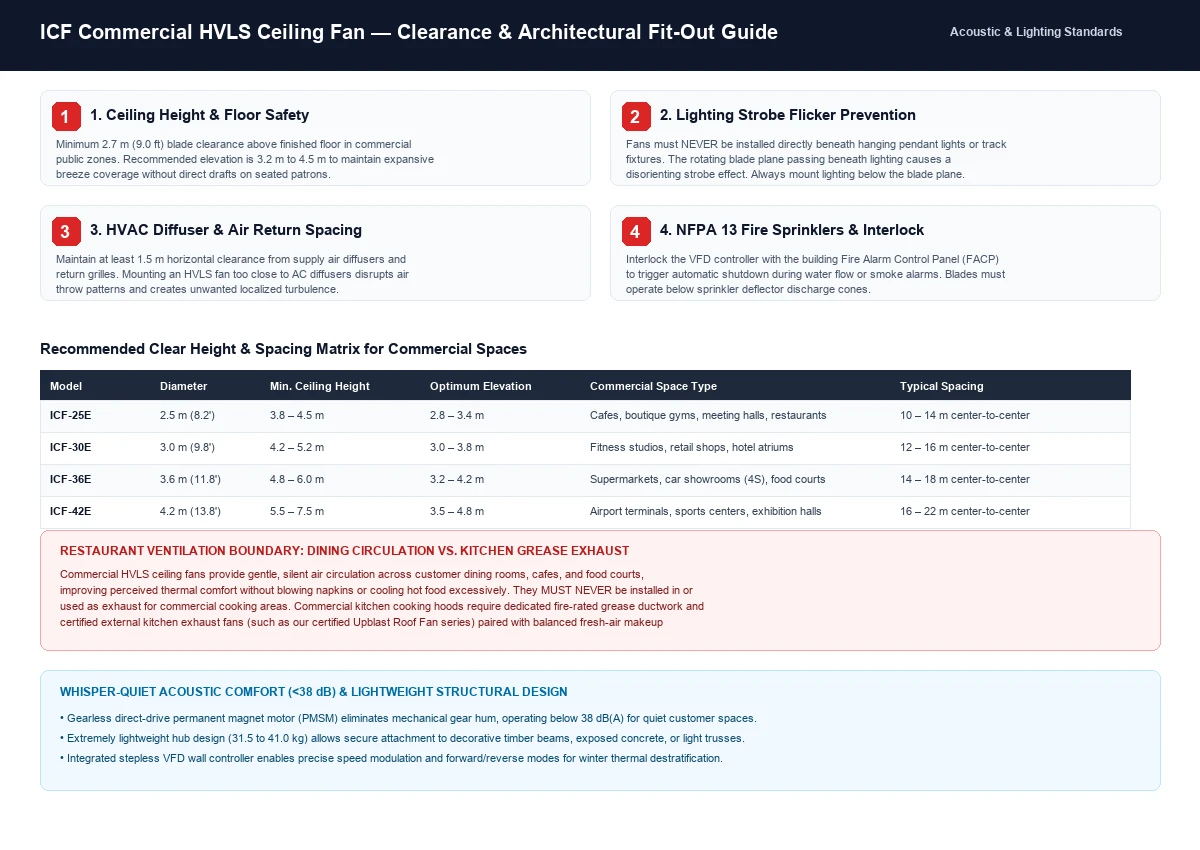

Figure 1: Essential architectural clearances for commercial HVLS fans, including minimum 2.7m floor elevation, lighting strobe avoidance, HVAC diffuser spacing, and restaurant dining boundaries.

Key Features

Verified construction & design advantages

Architectural and mechanical features engineered for quiet, reliable commercial air circulation.

High-efficiency gearless permanent magnet synchronous motor (PMSM) operating virtually silent (<38 dB) without mechanical hum
Aerodynamic polymer composite airfoil blades optimized for high lift-to-drag ratio and gentle, expansive breeze distribution
Ultra-low power consumption (150 W to 340 W) delivering high volumetric efficiency for reduced commercial operating costs
Lightweight architectural hub chassis (31.5 to 41.0 kg) enabling direct attachment to structural steel, exposed concrete, or timber beams
High-temperature NdFeB permanent magnets rated to 130°C to eliminate motor demagnetization risks in high-temperature atriums
IP65 enclosure rating with sealed dust protection and innovative internal heat dissipation for long maintenance-free service
Comprehensive structural safety system including primary drop downrod, safety retention cables, and blade anti-drop structure
Digital VFD smart wall touch controller with stepless speed regulation, forward/reverse destratification modes, and BMS Modbus integration
Specifications

Technical specifications

Reference engineering summary for architects, interior designers, MEP consultants, and facility managers.

Specification ParameterICF Commercial Series Capability
Product CategoryHVLS Commercial Ceiling Fan
Series DesignationICF-E Commercial Series
Drive MechanismGearless Direct-Drive Permanent Magnet Synchronous Motor (PMSM)
Diameter Options2.5 m (8.2 ft), 3.0 m (9.8 ft), 3.6 m (11.8 ft), 4.2 m (13.8 ft)
Airflow Capacity127,058 to 238,235 CFM (3,600 to 6,750 m³/min) catalogue reference
Motor Power Draw150 W, 260 W, 325 W, 340 W (single-phase 220V or 3-phase 380V 60Hz)
Operating Noise LevelUnder 38 dB(A) at maximum speed in commercial ambient acoustics
Hub Operating Weight31.5 kg (2.5m) to 41.0 kg (4.2m)
Motor Ingress ProtectionIP65 dust-tight and water-jet resistant

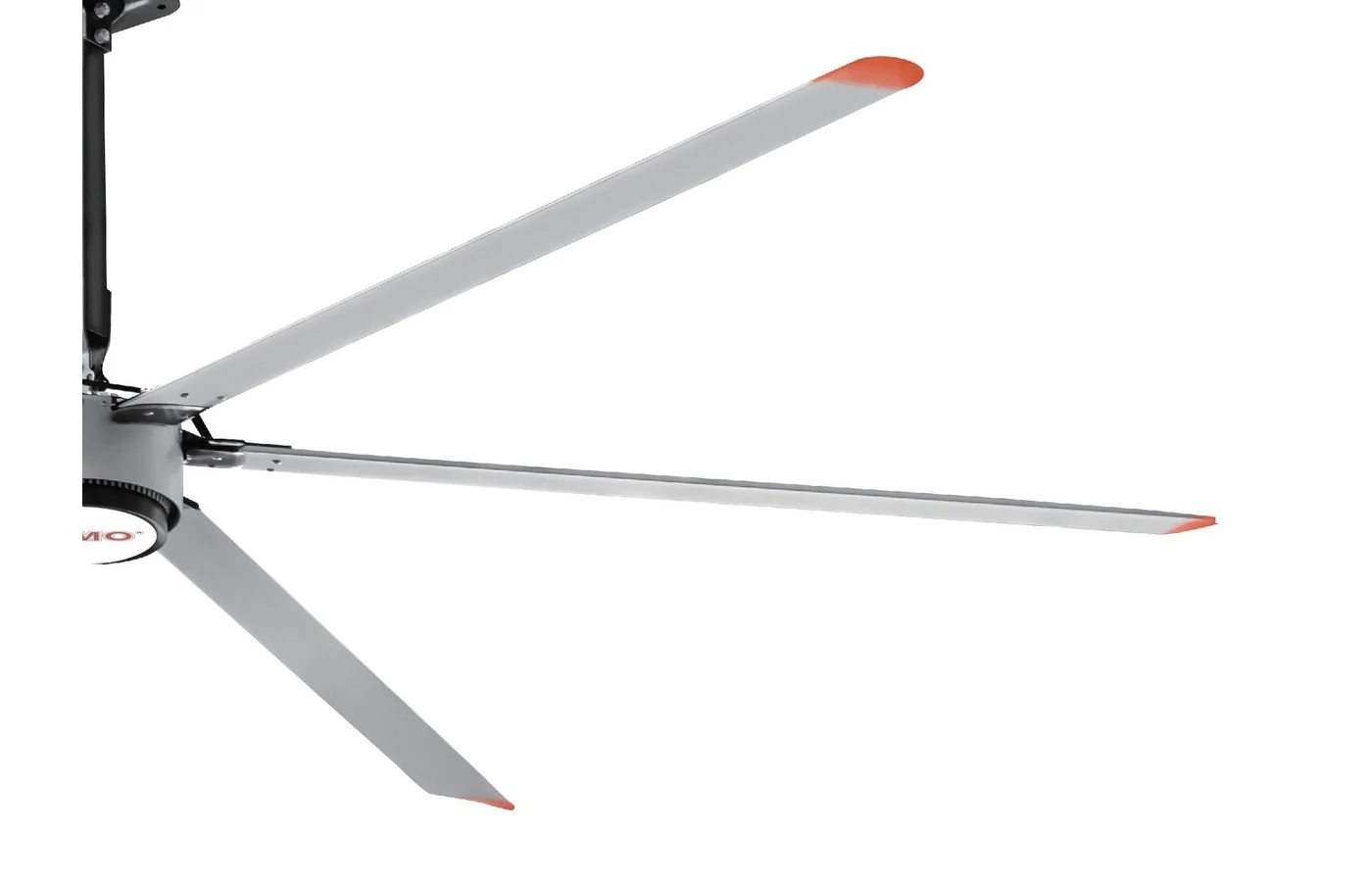

Blade MaterialHigh-grade polymer composite with architectural end-cap winglets
Fire Alarm CoordinationDry-contact emergency shutdown relay for NFPA 13 fire alarm panel (FACP)
Motor Warranty10-year manufacturer warranty commitment on permanent magnet motor
Application Scope

Commercial & public venue circulation applications

Where large-diameter ICF-E commercial ceiling fans are selected for aesthetic fit and silent air movement.

Gyms & Fitness Centers

Provides expansive convective sweat evaporation over workout floors, cardio zones, and crossfit studios.

Supermarkets & Retail Stores

Maintains gentle, steady air circulation across aisles and checkout counters without fluttering signage.

Restaurant Dining & Cafes

Enhances diner comfort in open seating and food courts; paired with separate certified kitchen grease exhaust.

Automotive Showrooms (4S)

Sleek architectural design that complements premium vehicle displays while preventing localized warm spots.

Commercial Atriums & Lobbies

Destratifies tall multi-story ceilings, pulling trapped winter heat down to occupied lobby reception floors.

Airport Terminals & Stations

Quiet, non-intrusive wide-area airflow support across passenger waiting areas, ticketing, and concourses.

Auditoriums & Event Pavilions

Ultra-low sound signature (<38 dB) engineered for acoustically sensitive performance and lecture spaces.

Commercial Fit-Out Procurement

Supplied complete with ceiling bracket kits, digital wall controllers, safety cables, and submittal packages.

Engineering Selection

Commercial selection checklist & sizing parameters

To verify accurate fan diameter, quantity, spacing, and lighting coordination, provide the following parameters for quotation.

1Commercial space function (gym, supermarket, restaurant dining, showroom, atrium)
2Room dimensions (length × width in metres) and customer seating/occupancy layout
3Clear ceiling height (distance from finished floor to structural mounting ceiling)
4Ceiling architectural structure (exposed concrete slab, decorative timber beams, steel purlins)
5Overhead obstacles: pendant lighting heights, HVAC ductwork, supply diffusers, and display signage
6NFPA 13 fire sprinkler locations and clearance relative to the fan blade rotation plane
7Acoustic noise criteria (e.g. NC-30 or NC-35 sound thresholds for public spaces)
8Electrical power supply (220V single-phase 60Hz or 380V 3-phase) and BMS automation interface
Accessories

Mounting brackets, safety hardware & smart controls

Architectural mounting components to coordinate with concrete ceilings, timber beams, open steel trusses, and central BMS.

Architectural Drop Downrods (0.5 m, 1.0 m, 1.5 m, 2.0 m extensions)
Universal Ceiling Mounting Bracket (Concrete Slab & Steel Beam)
Redundant High-Tensile Stainless Steel Safety Cable Kit
Wall-Mounted Digital LCD Touch Screen VFD Controller
BMS Modbus RS485 Central Building Automation Gateway
Integrated Central LED Downlight Module (optional on select hubs)
Technical Resources & Provenance

Documentation, catalogues & submittal packages

Download the official manufacturer catalogue and request project-specific CAD drawings and submittals.

ICF HVLS Ceiling Fan Catalogue (PDF, 1.8 MB)

Provenance: Official Manufacturer Catalogue (Deton ICF Series)
Download Technical Catalogue

Request commercial fit-out drawings & CAD submittals

Provenance: Project-Specific Consultant Submittal Package
Request Engineering Submittal

Request corporate compliance (CR, VAT, ISO, COC)

Provenance: Cloud Electricals Corporate Documentation
Request Compliance

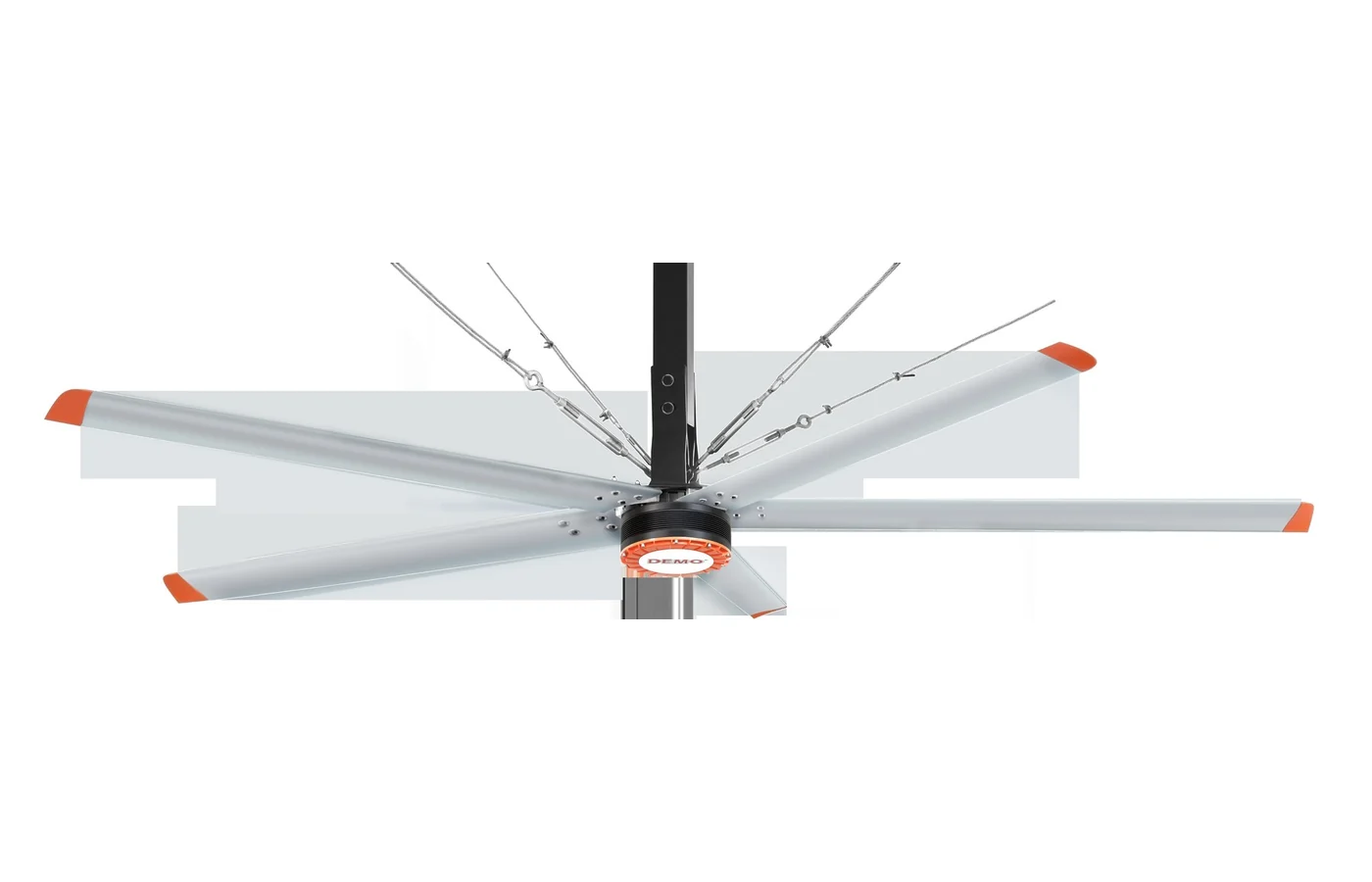

Explore industrial HVLS ceiling fan options (4.0–7.3 m)

Provenance: ICF Industrial Series for Warehouses & Factories
View Industrial Models
Frequently Asked Questions

Commercial HVLS ceiling fan FAQs

Guidance on commercial acoustic comfort, ceiling lighting strobe avoidance, restaurant ventilation, and sprinkler clearance.

While industrial HVLS fans feature larger diameters (4.0 to 7.3 m) engineered for high-bay warehouses and factories, commercial HVLS fans (2.5 to 4.2 m) are optimized for public architecture with lower ceilings (3.8 to 7.0 m). Commercial units operate whisper-quietly (<38 dB), feature sleek architectural finishes with optional integrated downlights, and draw ultra-low power (150 to 340 W) to match aesthetic and acoustic requirements in gyms, retail stores, and atriums.
